Brainstem vascular supply

View Details
Status
Done
logo
Parent item
Brainstem

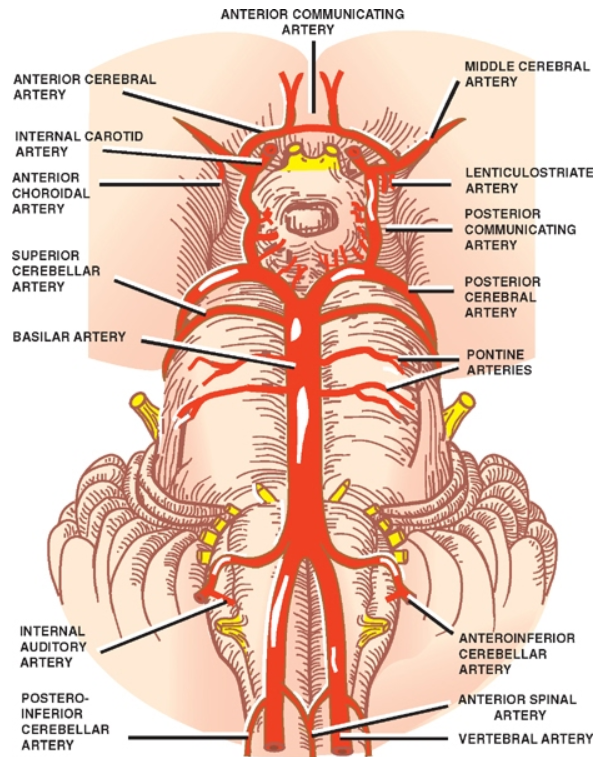

Blood Supply of the Brainstem

ARTERY SUPEROR CEREBELLAR ARTERY C 工 0 コ OIOAL ANTERIOR ARTERY ANTEROR 0 市 8E88A に MERNAL 0A80 当 0 ARTERY AtnTORY NTERNAL CEREBELLAR 、 い POSTERIOR ANTERIOR の P を A 、 ERTEBRAL 、 RTERY ARTERY CEREBELLAR ARTERY CEREBRAL ARTERY 00 要 、 ミ -6A1 を い ARTERY LENTICULOSTRIATE を 00 ′ E CEREBRAL ARTERIES ARTERY RONFERIOR

notion image
notion image

Derived from

  • Vertebral arteries give rise to:
    • Posterior spinal artery
    • Anterior spinal artery
    • Posteroinferior cerebellar artery
  • Basilar Arteries
    • Formed from the vertebral arteries at the ponto-medullary junction
    • Give rise to
      • Anteroinferior cerebellar arteries
      • Superior cerebellar arteries
      • Posterior cerebral arteries
      • Numerous small paramedian and circumferential pontine branches

Branches of the vertebral and basilar arteries may be conceptually subdivided into

  • Paramedian branches → medial brainstem
  • Short circumferential branches → anterolateral brainstem
  • Long circumferential branches → posterolateral brainstem

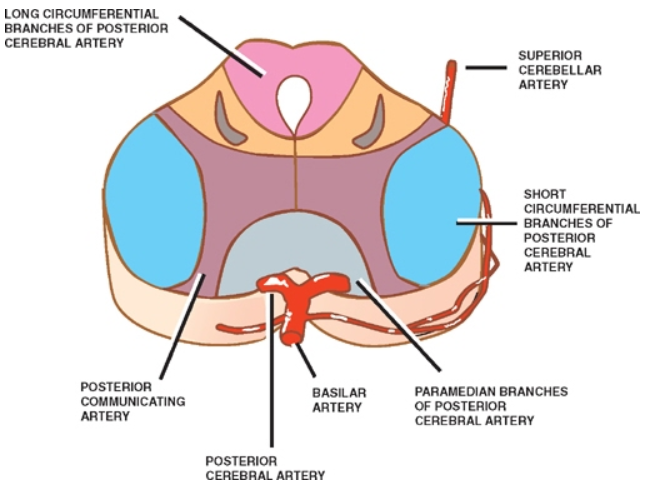

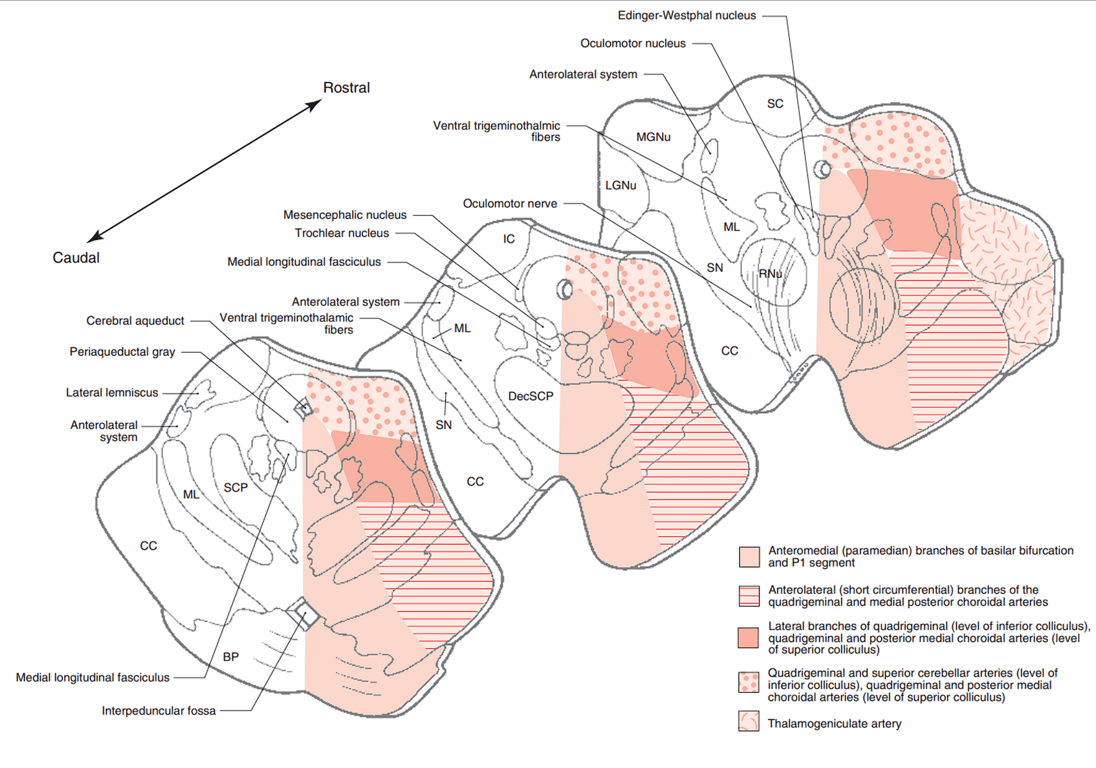

Midbrain

  • Posterior cerebral artery (Main)
    • Paramedian branches
    • Short circumferential branches
    • Long circumferential branches
  • Others
    • Superior cerebellar artery
      • Short circumferential branches
      • Long circumferential branches
    • Internal carotid artery system
      • Posterior communicating artery → Rostral most midbrain
LONG CIRCUMFERENTIAL BRANCHES OF POSTEROR CEREBRAL ARTERY CCw ARTERY POSTERIOR ARTERY CEREBELLAR (NCUMFERENTIAL BRANCHES POSTERIOR ARTERY PARAW DIAN OF POSTERIOR CEREBRAL ARTERY

Pons

  • Medial basal pons,
    • Includes
      • Corticospinal tract
      • Medial lemniscus
    • Supplied by
      • Paramedian branches of the basilar artery
  • Lateral pons
    • Includes
      • Spinothalamic tract
      • Descending sympathetic fibers,
      • Spinal tract and nucleus of the trigeminal nerve
    • Supplied by basilar artery
      • Rostral: Superior cerebellar artery
      • Caudal: Anteroinferior cerebellar artery
Т (гомону) (с..м.иу) вамп АНТЕЯМ вяднснЕ$ 0F двтеву

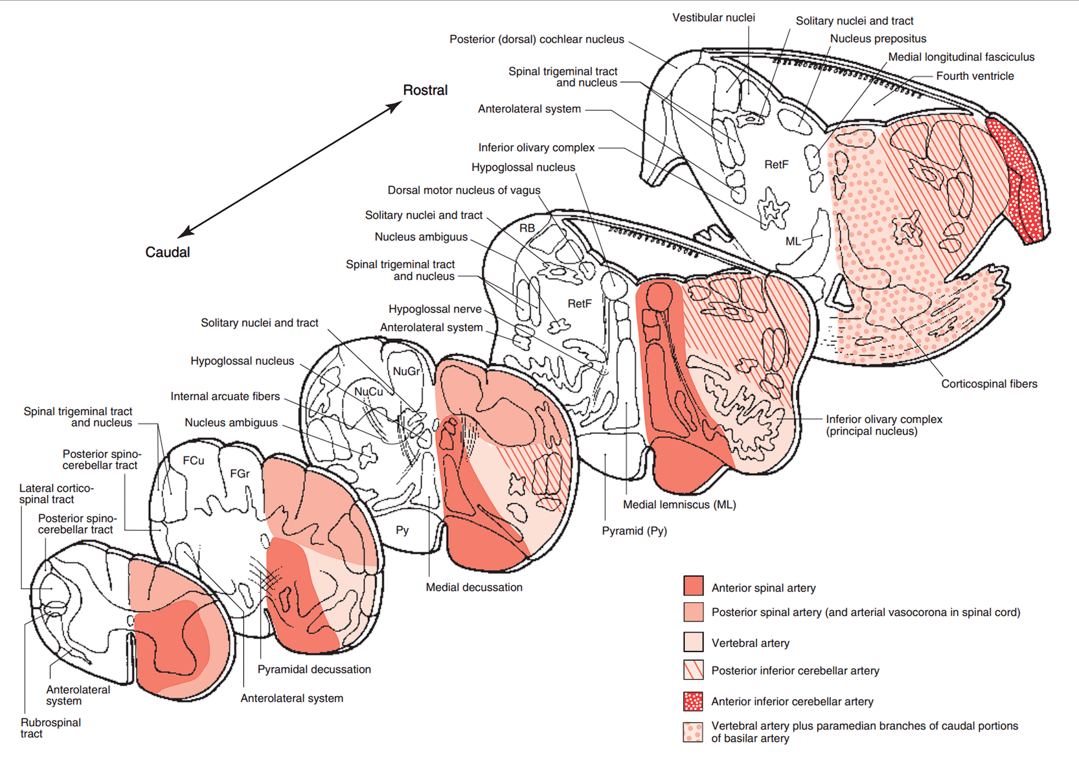

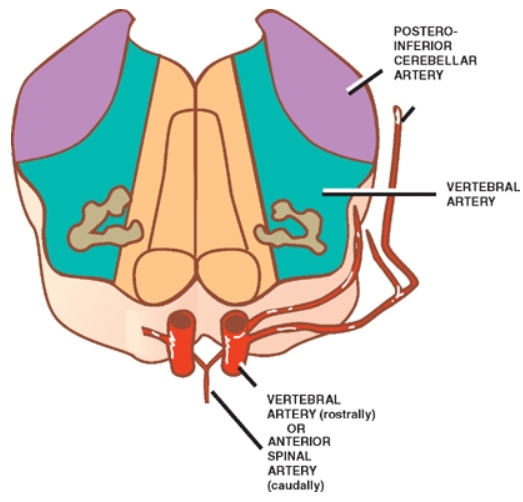

Medulla

  • Medial portion of the medulla
    • Includes
      • Corticospinal tract
      • Medial lemniscus,
    • Supplied by
      • Cranially: Vertebral artery
      • Very caudally: The anterior spinal artery.
  • Lateral portion of the medulla,
    • Including
      • Spinothalamic tract
      • Descending sympathetic fibers,
      • Spinal tract and nucleus of the trigeminal nerve,
    • Supplied by
      • Vertebral artery
      • Posterior inferior cerebellar artery.
notion image
