Cortex

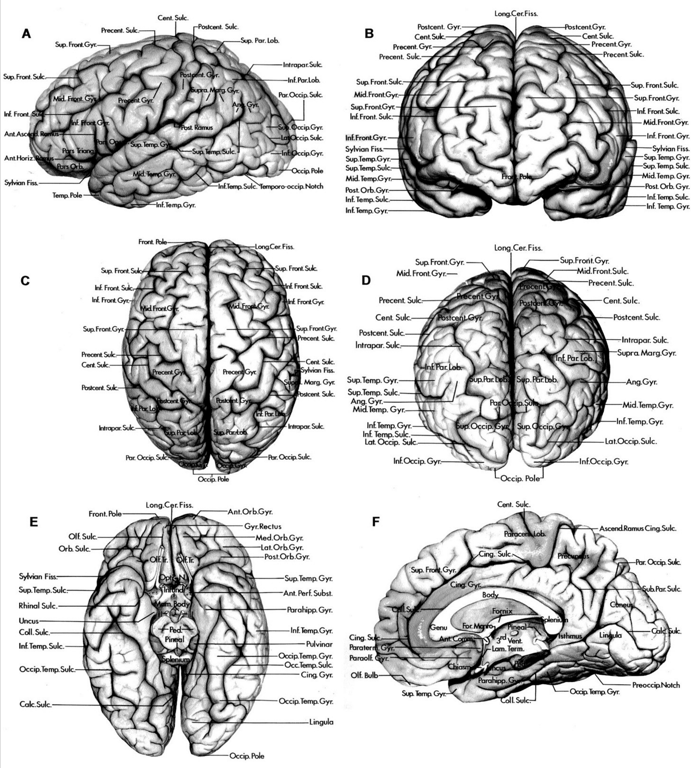

Abbreviations

Ang., angular; Ant., anterior; Ascend., ascending; Calc., calcarine; Cent., central; Cer., cerebral; Cing., cingulate; Coll., collateral; Comm., commissure; Fiss., fissure; For., foramen; Front., frontal; Gyr., Gyrus; Horiz., horizontal; Inf., inferior; Infund., infundibulum; Intrapar., intraparietal; Lam., lamina; Lat., lateral; Lob., lobule; Long., longitudinal; Mam., mamillary; Marg., marginal; Med., medial; Mid., middle; N., nerve; Occip., occipital; Olf., olfactory; Operc., opercularis; Orb., orbital, orbitalis; Par., parietal; Par. Occip., parieto-occipital; Paracent., paracentral; Parahipp., parahippocampal; Paraolf., paraolfactory; Paraterm., paraterminal; Ped., peduncle; Perf., perforated; Post., posterior; Postcent., postcentral; Precent., precentral; Preoccip., preoccipital; Sub. Par., subparietal; Subst., substance; Sulc., sulcus; Sup., superior; Supra. Marg., supramarginal; Temp., temporal; Temporo-occip., temporo-occipital; Term., terminalis; Tr., tract; Triang., triangularis; Vent., ventricle.

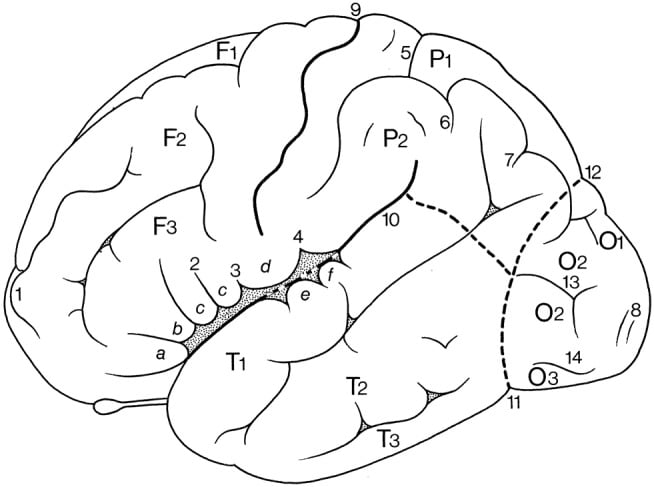

Abbreviation

a, Orbital; b, Triangular; c, Opercular; d, Subcentral gyrus; e, f, Transverse temporal gyri of Heschl; F1, F2, F3, Superior, middle, and inferior frontal gyri; O1, O2, O3, Superior, middle, and inferior occipital gyri; P1, P2, Superior and inferior parietal lobules; T1, T2, T3, Superior, middle, and inferior temporal gyri; 1, Frontomarginal sulcus of Wernicke; 2, Diagonal sulcus of Eberstaller; 3, Anterior subcentral sulcus; 4, Posterior subcentral sulcus; 5, Transverse parietal sulcus of Brissaud; 6, First intermediate sulcus of Jensen; 7, Second intermediate sulcus of Eberstaller; 8, Descending occipital gyrus of Ecker; 9, Central sulcus; 10, Lateral sulcus; 11, Preoccipital notch of Meynert; 12, Parietooccipital sulcus; 13, Lunate sulcus; 14, Inferior occipital sulcus.
