  • The glossopharyngeal nerve emerges from the medulla with the vagus and hypoglossal nerves and exits the skull via the jugular foramen, accompanied by the vagus and accessory nerves.
Jacobson nerve
  • Aka
    • Tympanic branch of the glossopharyngeal nerve (CN IX)
  • Inferior salivary nucleus → Arises from the inferior ganglion of the glossopharyngeal nerve → Carries preganglionic parasympathetic fibres → enters the tympanic cavity via the inferior tympanic canaliculus (Jacobson canal) → contributes to the tympanic plexus located on the cochlear promontory → The parasympathetic fibres leave the plexus as the lesser petrosal nerve → Otic ganglion → auriculotemporal nerve → parotid gland
  • Pathology
    • The neuroendocrine cells related to this nerve give rise to tympanic paraganglioma.
    • A Jacobson nerve schwannoma is a rare middle ear tumour presenting as a mass along the cochlear promontory or enlargement of the inferior tympanic canaliculus
      •
notion image
notion image

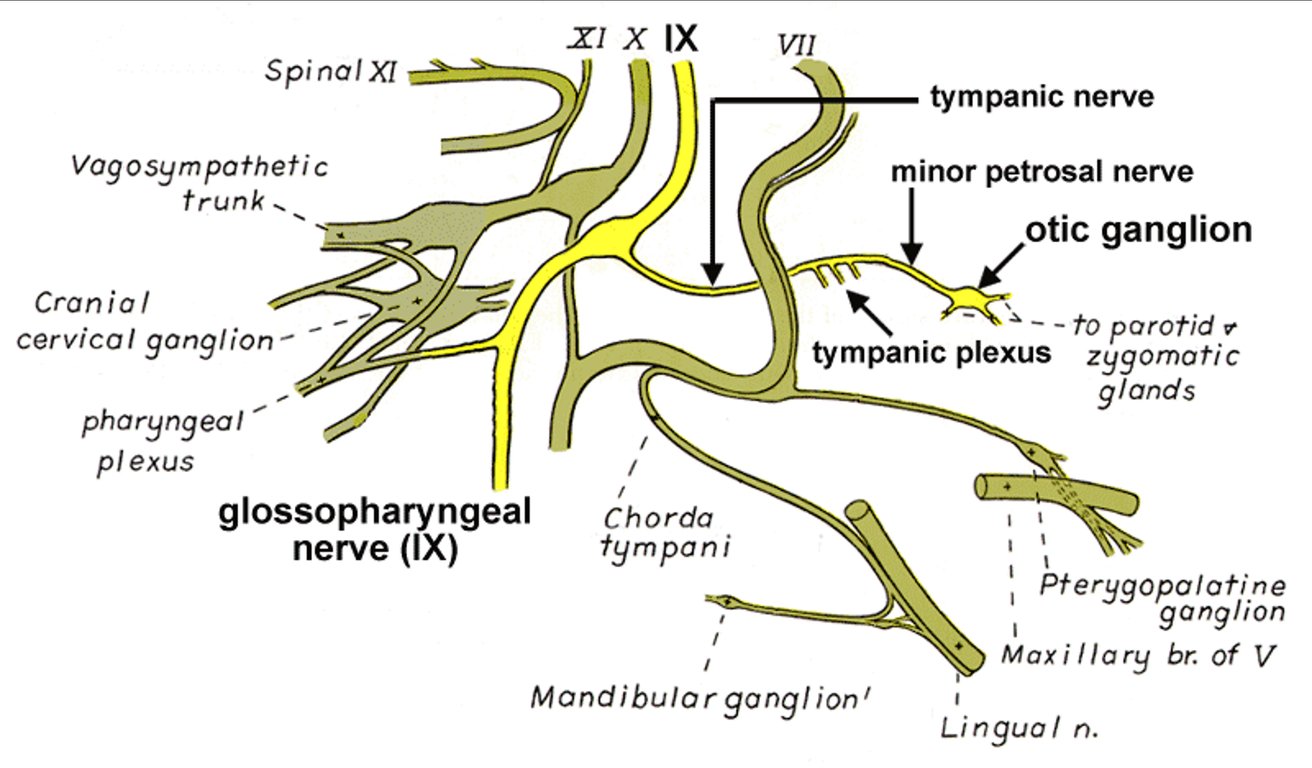

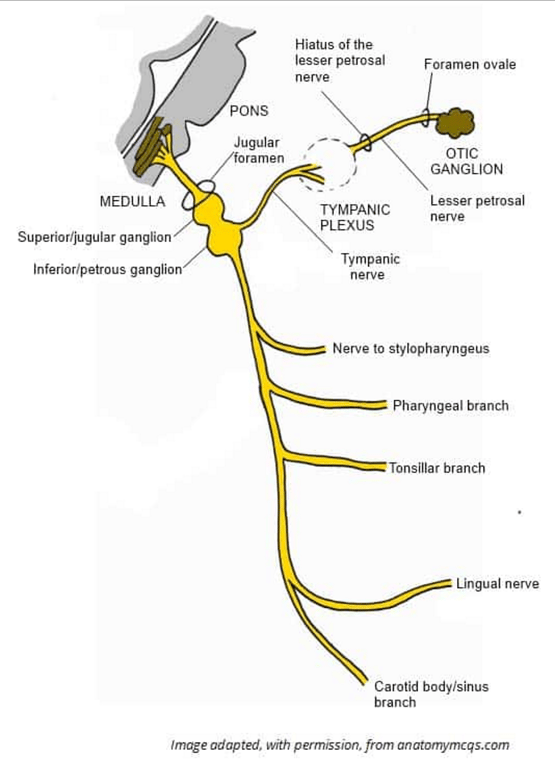

Tympanic nerve supplies the parasympathetic afferents of the tympanic plexus (see Nerve anastomosis)
Tympanic nerve supplies the parasympathetic afferents of the tympanic plexus (see Nerve anastomosis)
notion image

Function

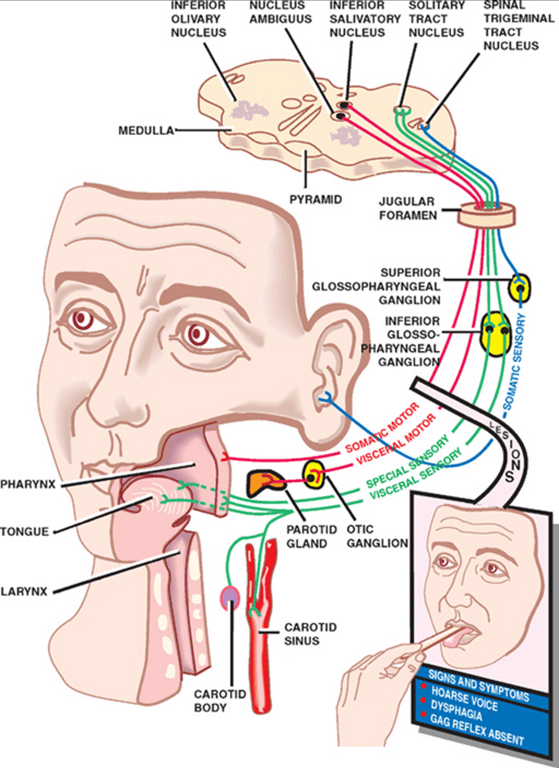

  • Five functional components make up the glossopharyngeal nerve (IX):
      • Components
      Ganglia
      Nuclei
      Exit through Skull
      Target Organ
      Function
      Somatic motor
      ㅤ
      Nucleus ambiguus
      Jugular foramen
      Stylopharyngeus
      Elevates pharynx
      Visceral motor
      Otic
      Inferior salivatory
      ㅤ
      Parotid gland
      Gland secretion
      Somatic sensory
      Superior glossopharyngeal
      Spinal trigeminal tract
      ㅤ
      External ear
      Somatic sensation
      Visceral sensory
      Inferior glossopharyngeal
      Solitary tract
      ㅤ
      Carotid sinus and body; pharynx and posterior third of tongue
      Baro- and chemoreceptor reflexes; pain, temperature, and touch sensation
      Special sense
      ㅤ
      ㅤ
      ㅤ
      Taste buds in posterior third of tongue
      Taste
    • Special sensory fibers have their cell bodies in the inferior glossopharyngeal ganglion.
      • They supply the taste buds in the posterior third of the tongue and terminate in the nucleus of the solitary tract.

Clinical

Hering’s nerve

  • A branch of CN IX that is the sensory limb of the carotid body. When a chemoreceptor detects changes in blood O2 and CO2 concentration, Hering’s nerve is stimulated

Glossopharyngeal nerve lesion

  • Rarely occurs in isolation
  • Causes
    • Hoarse voice
    • Dysphagia
    • Loss of the gag reflex
    • Glossopharyngeal neuralgia
      • A syndrome of agonizing ear and throat pain, is similar in character to trigeminal neuralgia but less common.

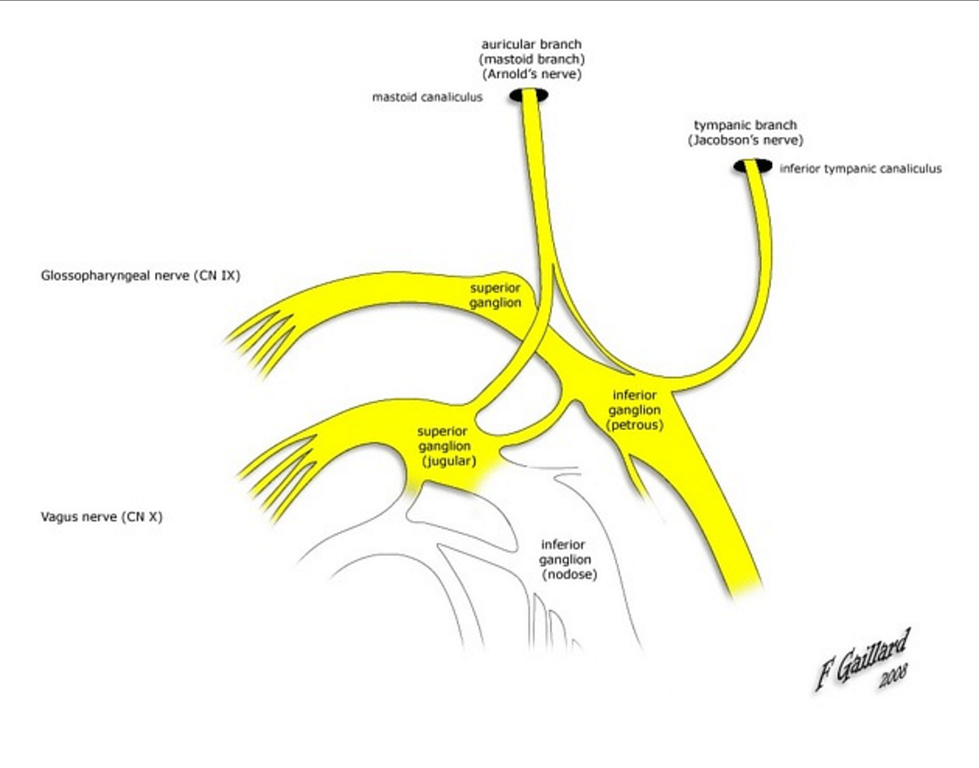

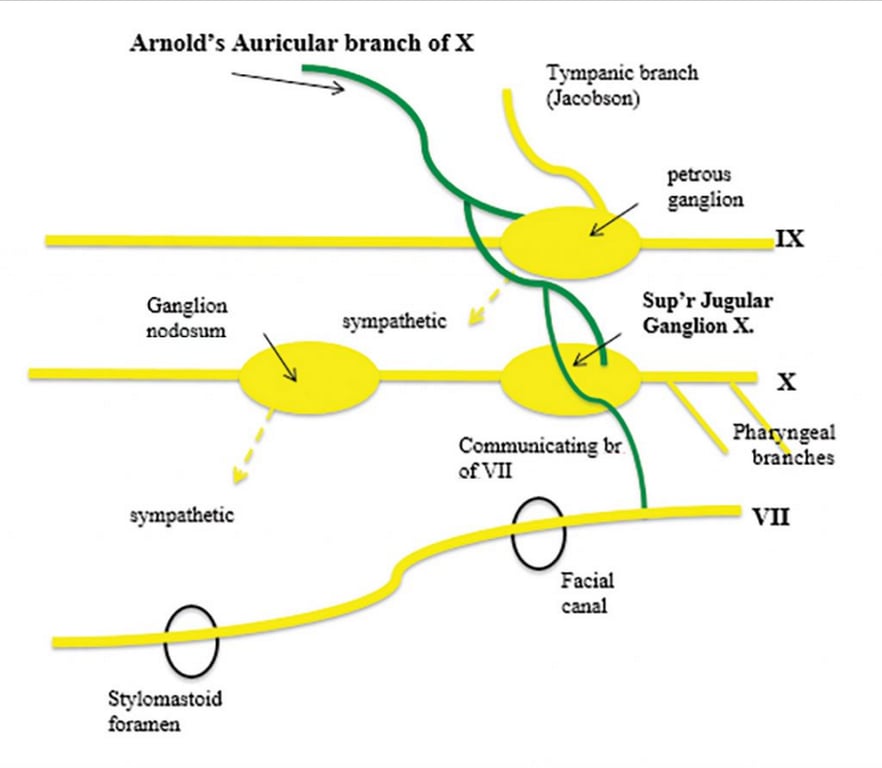

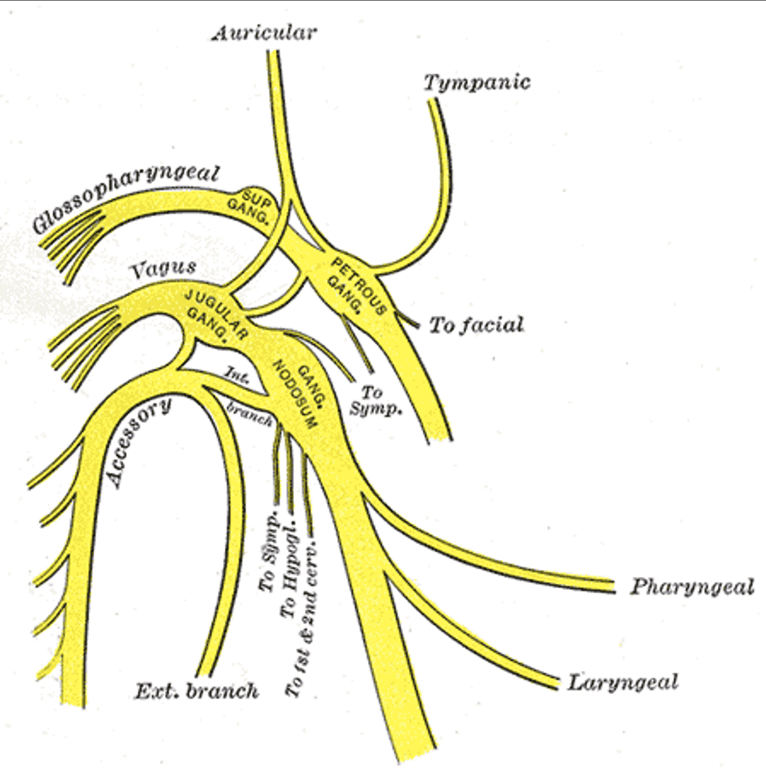

Relationship of CN9 with other nerves

notion image
notion image


Images

notion image

notion image
