Ethmoid bone

View Details

Status

Done

Parent item

Skull

Consists

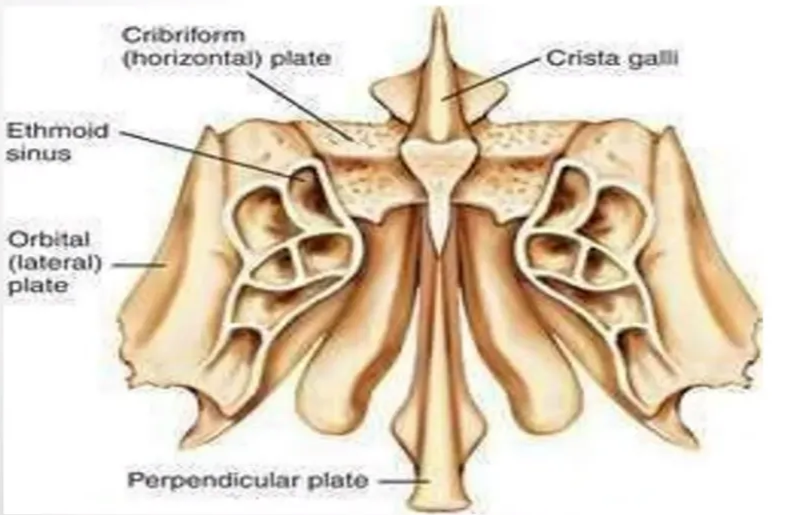

• Horizontal plate (cribriform plate)

• Vertical plate in the midline (the perpendicular plate)

• The lateral plate



• The cribriform plate forms of 2 parts:
• Horizontal medial lamella
• Vertical lateral lamella: This lateral lamella articulates with the frontal bone.

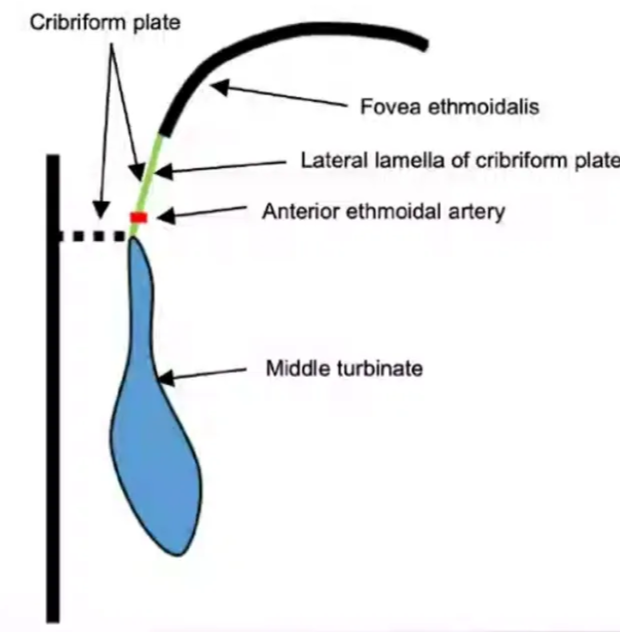

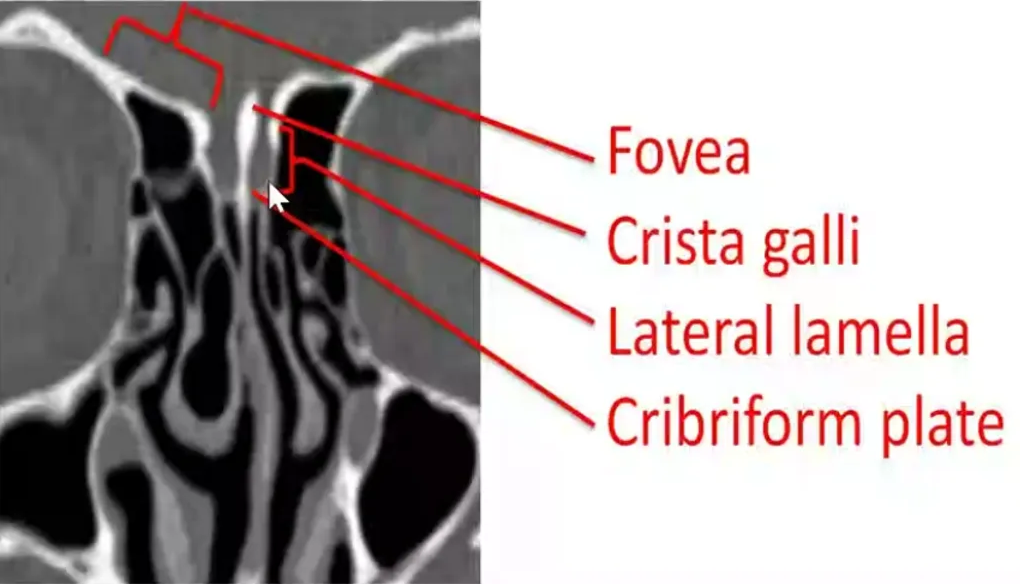

• The skull base in this region — the ethmoid fovea — is formed:
• Medially — lateral lamella of the cribriform plate — very thin bone (0.2 mm)
• Laterally — frontal bone — thicker bone (0.5 mm)

• The region where the anterior ethmoidal artery pierces the dura medially is the thinnest area in the skull base and is only 0.05 mm in thickness.

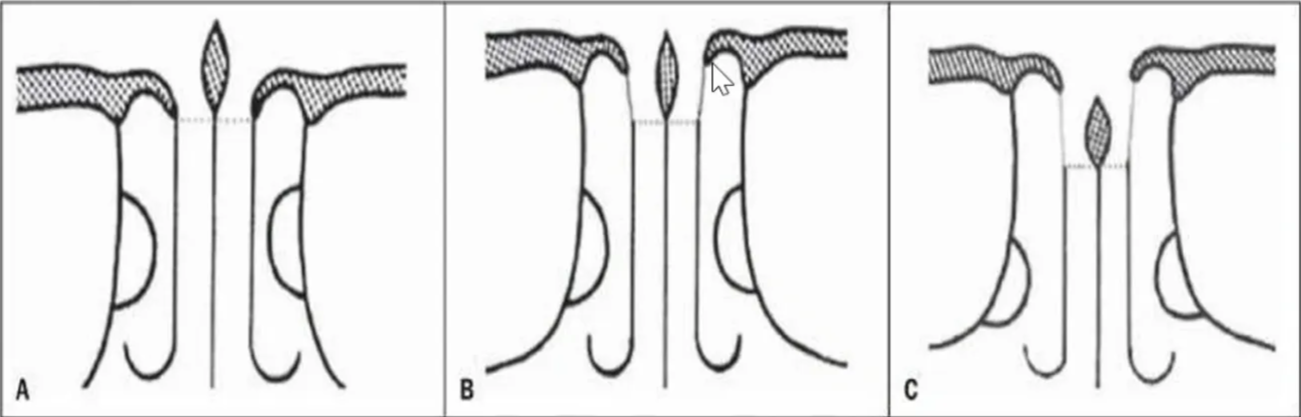

Keros classification

• Based on the length of lateral lamella of cribriform plate:
• Type 1: 1–3 mm
• Type 2: 4–7 mm
• Type 3: 8–17 mm
