  • General
    • CSF formation = absorption + storage
    • CSF pressure = Rout*CSFformation + Pss + Vascular component?
    • Brain does not float in CSF (volume brain : CSF = 10:1)
    • CSF equalizes pressure in brain compartments

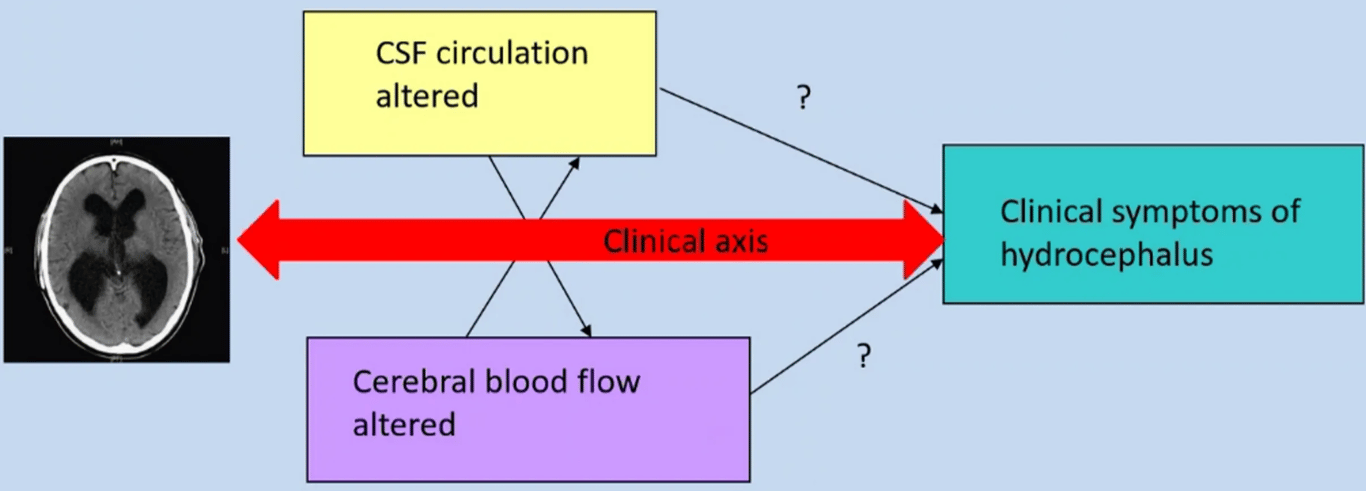

  • Mechanism
      • Hydrocephalus is far more complex than disorder of CSF circulation
        • Which are reasons and which are effects?
        • What are weights?
        • Does this naive scheme depend on time? Age? Aetiology?
      notion image

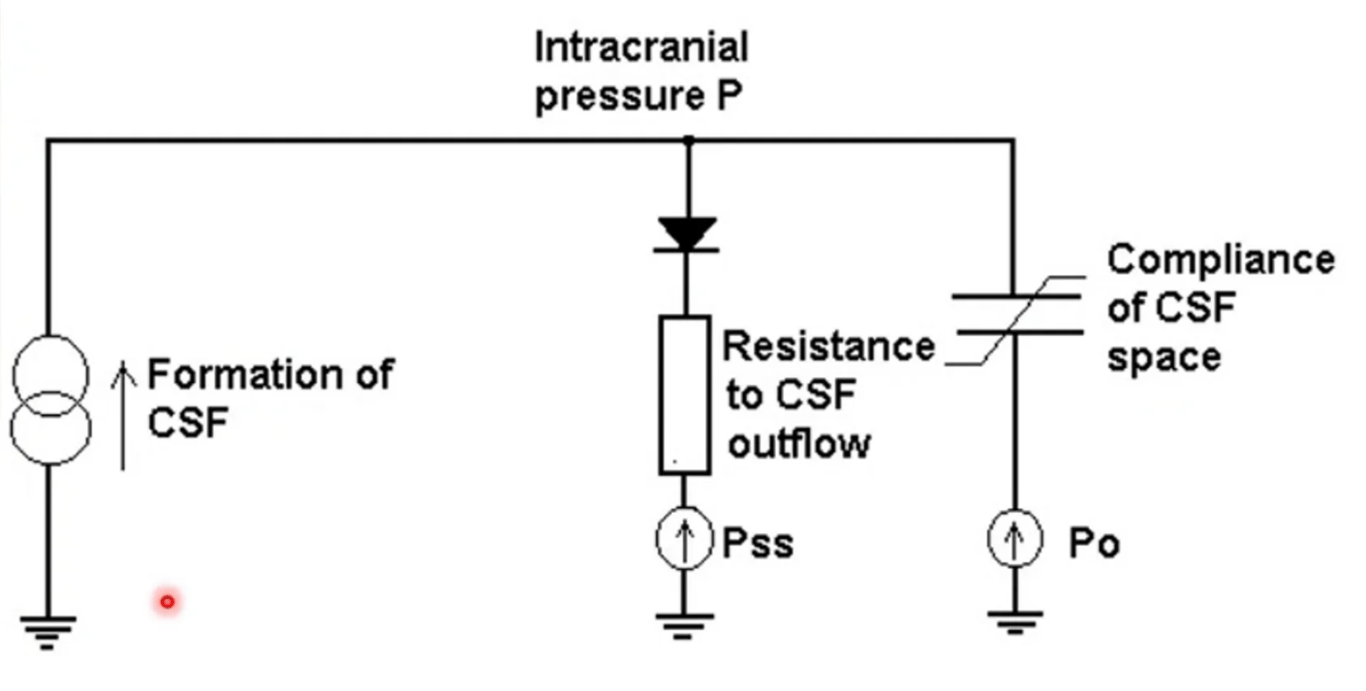

  • Marmarou’s model
      • Remained unchanged over time
      • Reference: A theoretical model and experimental evaluation of the cerebrospinal fluid system. Thesis, Drexel University, Philadelphia, PA, 1973
      notion image
    • Different equation describing Marmarou’s model
        • notion image
      • Taking into account the expression in the equation we can find the differential equation, in which ICPₛₛ, difficult to measure, is replaced by the baseline pressure ICPb
          • notion image
      • It can be solved analytically for infusion test

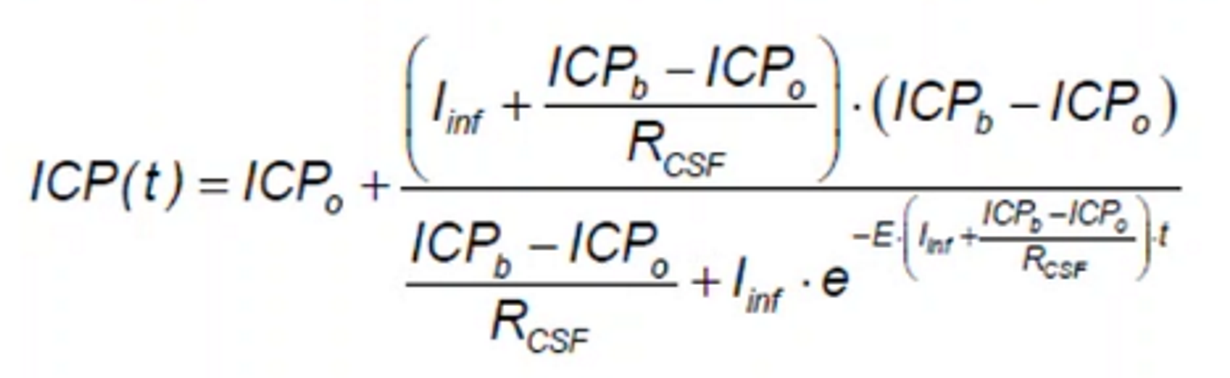

        • After introducing the initial condition and the expression into equation the relation describing the change of ICP during infusion can be presented as
            • notion image

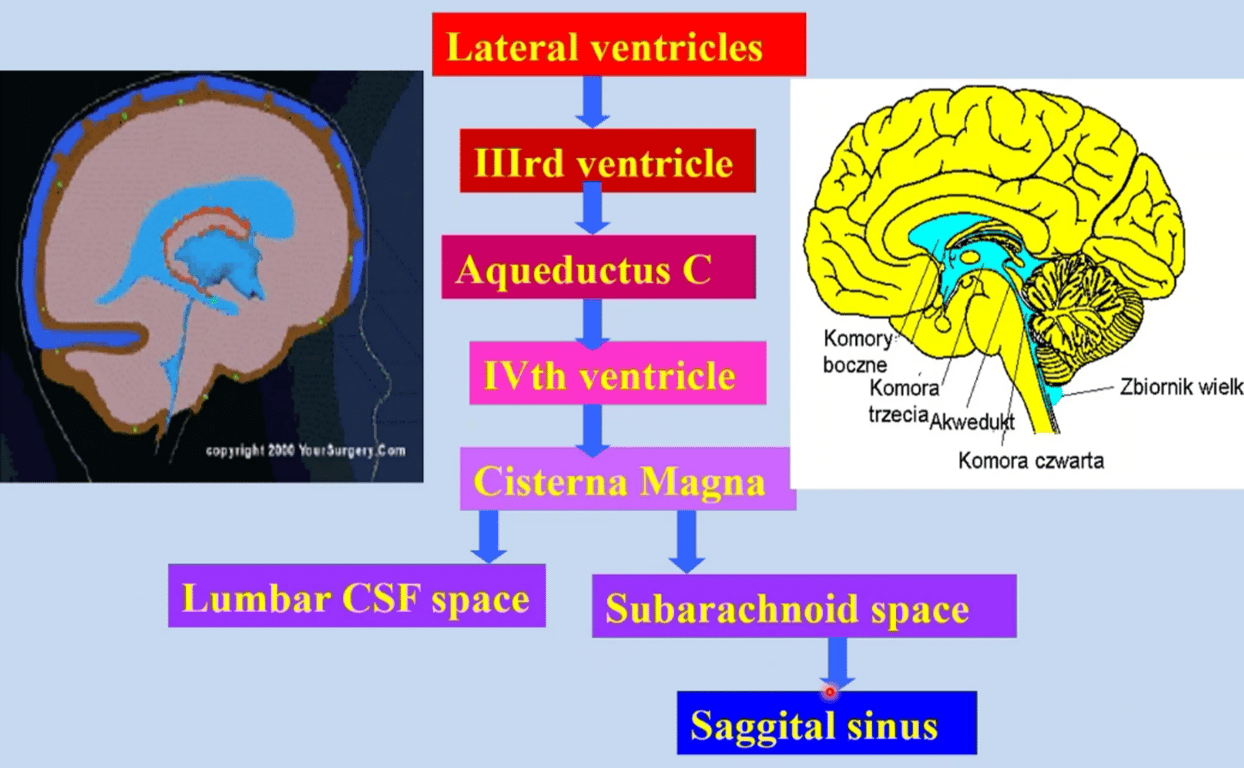

  • CSF circulation
      • notion image

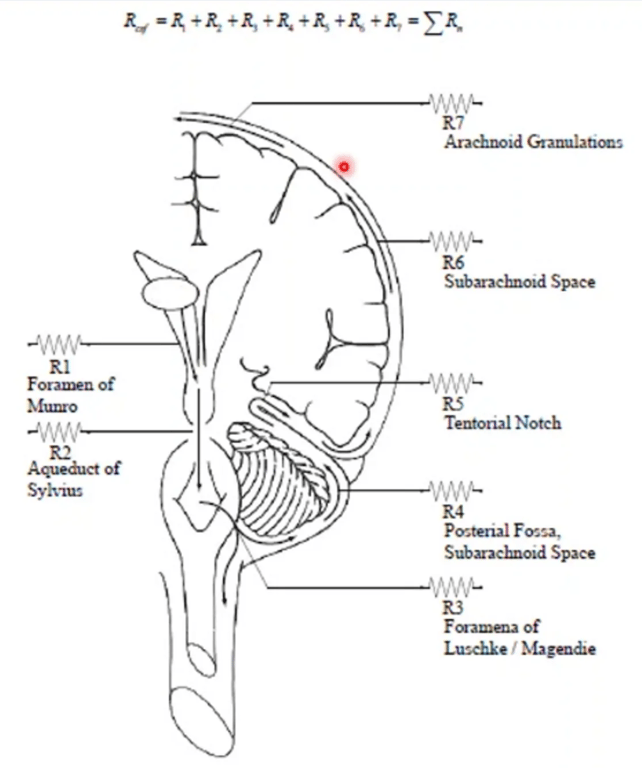

    • Resistance to CSF outflow
      • Component
          • The resistance of the CSF outflow is the sum of total resistances, which include at the foramen of Munro, the aqueduct, the foramena of Luschke and Magendie, the subarachnoid spaces of the infra- and supra-tentorial regions, the tentorial notch, and the arachnoid granulations of the venous sinuses. Multiple resistances at the various regions of the CSF pathway may cause hydrocephalus. In addition, the degree and the location of a resistance increase may determine the treatments associated with the different types of hydrocephalus.
          notion image

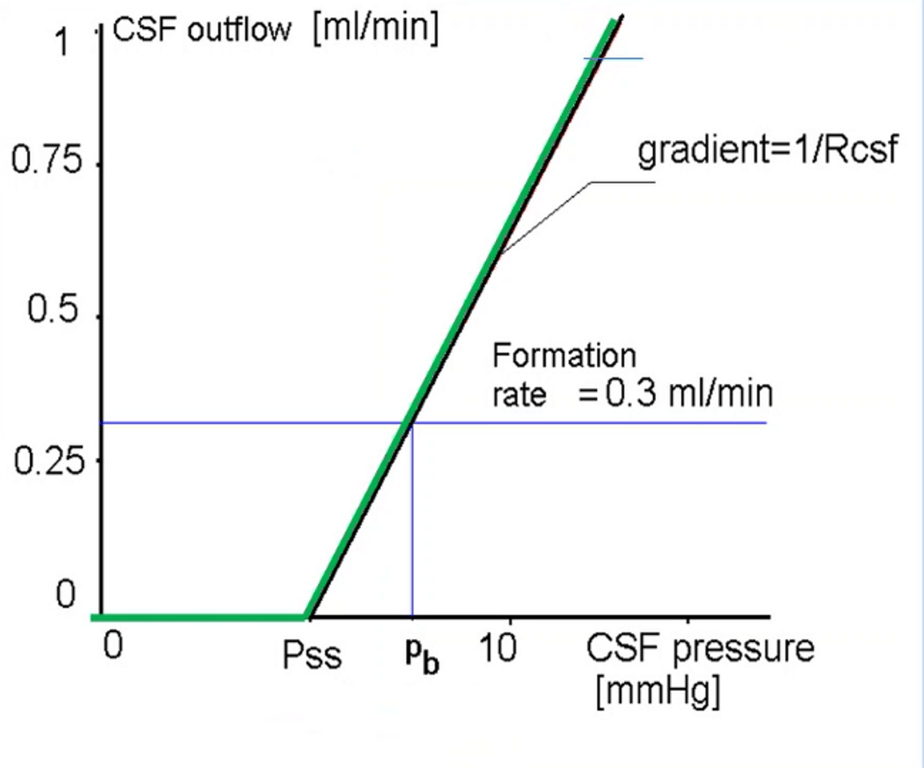

      • Davson’s equation
          • Pb = Pss + Rcsf * If
          • Normal value: 5-10 mmHg/(ml/min)
          • Elevated values: > 13 mmHg/(ml/min)
          • Too low values: < 4 mmHG/(ml/min)
          • Pb is baseline pressure
          notion image

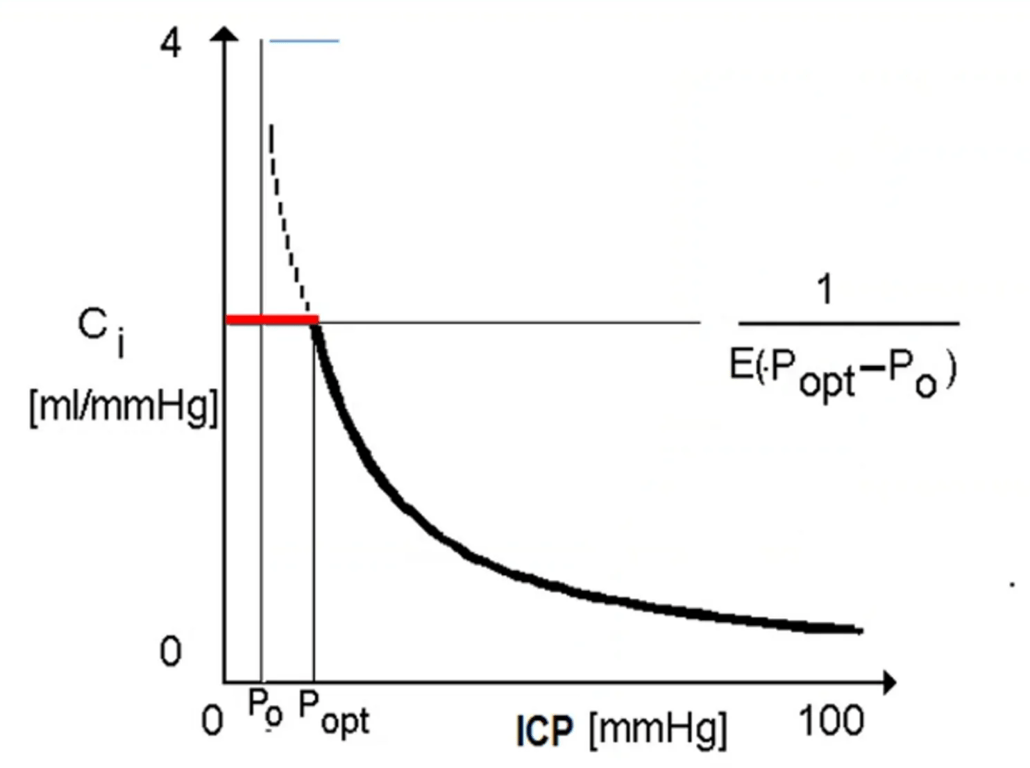

  • Brain compliance
    • Concept
        • E- elasticity [1/ml]
        • Normal values <0.18 [1/ml]
        • Compliance depends on pressure. Higher pressure lower compliance

        notion image

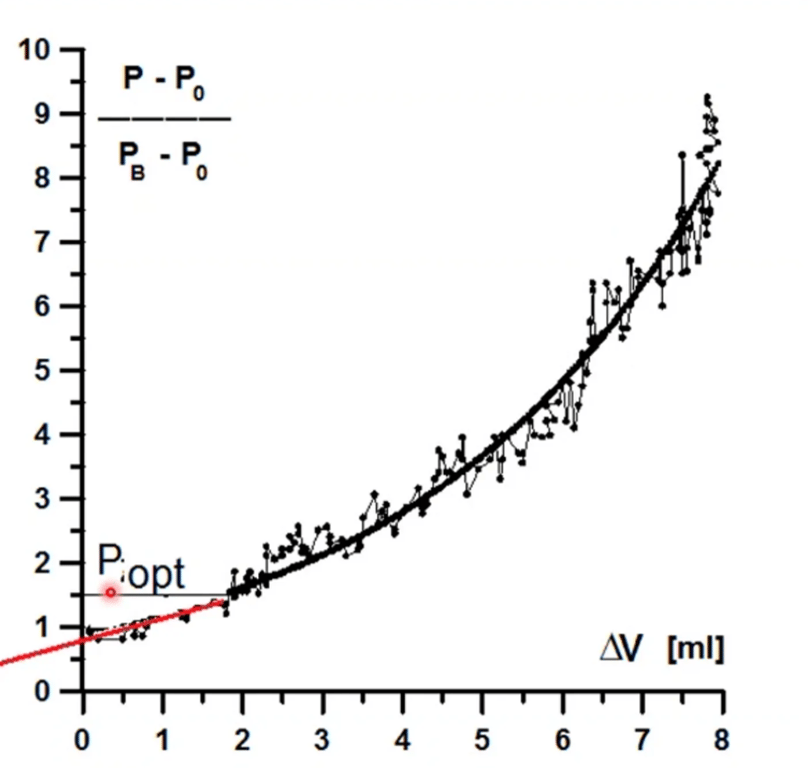

    • Pressure-volume curve
        • Greater elasticity - steeper the curve
        • At low pressures compliance is constant
        • But at above Poptimum the compliance changes exponentially with pressure
        notion image

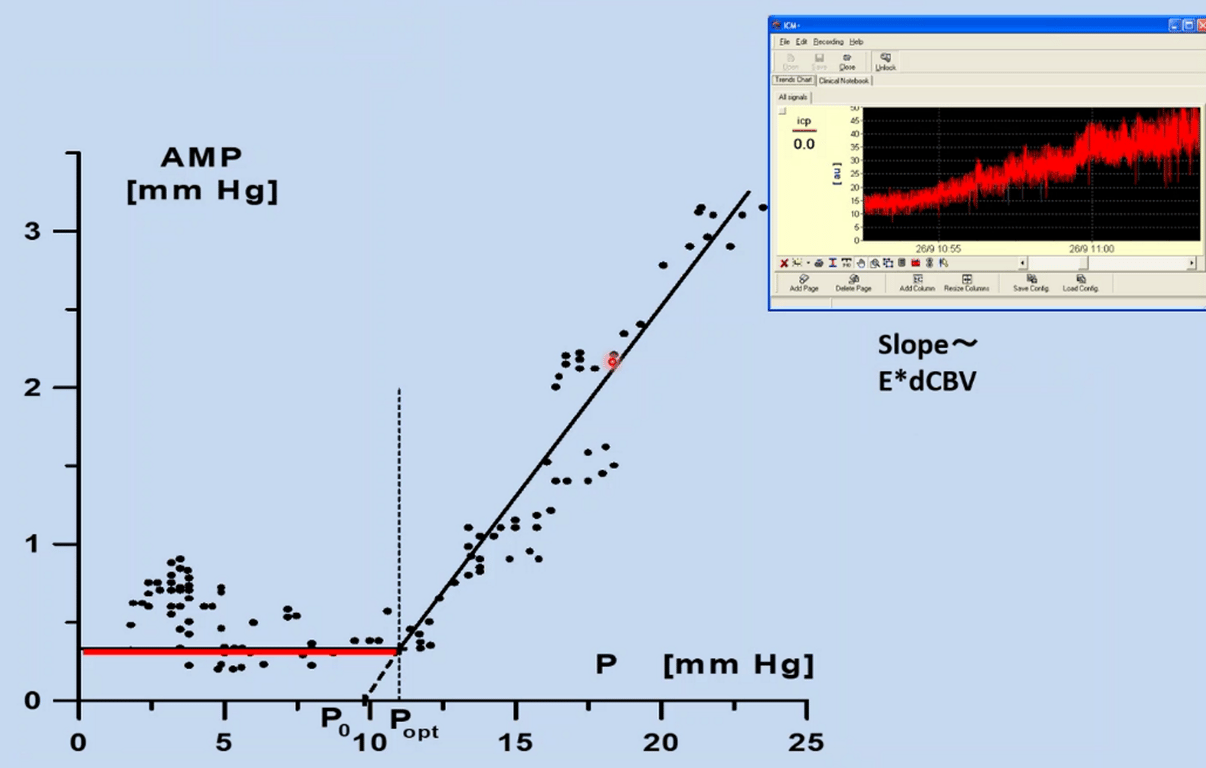

    • Relationship between Pulse Amplitude and mean ICP
        • notion image
