Idiopathic intracranial hypertension (IIH)

View Details

General

  • Aka
    • Pseudotumor cerebri (PTC)
    • Idiopathic intracranial hypertension
    • Benign intracranial hypertension
  • As far as neurosurgery is concerned
    • If there no vision problems (papillodema) then get the neurologist and/or ophthalmologist to manage
  • In general, the term pseudotumor cerebri is preferred because it encompasses cases where there is a known etiology as well as idiopathic cases (the concept of “secondary idiopathic intracranial hypertension” is an oxymoron).
  • Some, but not all, authors exclude patients with intracranial hypertension in the presence of dural sinus thrombosis.
  • There is a juvenile and an adult form

Definition

  • Is a condition characterized by increased ICP with no evidence of intracranial mass, hydrocephalus, infection (e.g. meningitis, especially chronic ones such as fungal meningitis), or hypertensive encephalopathy.
  • A diagnosis of exclusion
Term
Definition
Adult
All patients above the age of 16 years old for the purpose of this statement.
Idiopathic intracranial hypertension (IIH)
Patients with raised ICP of unknown aetiology fulfilling the criteria set out in figure 1.
Fulminant IIH
Patients meeting the criteria for a precipitous decline in visual function within 4 weeks of diagnosis of IIH.
Typical IIH
Patients who are female, of childbearing age and who have a body mass index (BMI) greater than 30 kg/m².
Atypical IIH
Patients who are not female, or not of childbearing age or who have a BMI below 30 kg/m². These patients require more in-depth investigation to ensure no other underlying causes (table 2).
IIH without papilloedema
A rare subtype of IIH and is seen in patients who meet all the criteria of definite IIH, seen in figure 1, in the absence of papilloedema. The criteria have highlighted the importance of a pressure greater than 25 cm CSF and the necessity for additional features, which suggest pathologically raised ICP. Features such as sixth nerve palsy and MRI imaging features indicating raised ICP should be sought (box 1).
IIH in ocular remission
Patients that have been diagnosed as IIH, and the papilloedema has resolved. These patients may have ongoing morbidity from headache, but their vision is no longer at risk while there is no papilloedema.

Epidemiology

  • Incidence
    • In general population 2.4/100,000
    • In obese women of childbearing years: 20/100,000
  • Age
    • Peak incidence in 3rd decade (range: 1–55 years)
    • Children
      • Very rare in infancy
      • 37% of cases are in children,
      • 90% of these are age 5–15 years.
  • Gender
    • Female: male ratio:2:1 to 8:1
    • No gender difference in juvenile form
    • Not as prevalent in men
  • Obesity is reported in 11–90% of cases
  • Frequently self limited
    • Recurrence rate: 9–43%
  • Visual deficit
    • Severe visual deficits develop in 4–12%
    • Unrelated to
      • Duration of symptoms,
      • Degree of papilledema,
      • Headache,
      • Visual obscuration,
      • Number of recurrences.
    • Perimetry is the best means to detect and follow visual loss

Pathogenesis

  • Not fully understood.
  • Theories
    • Increased cerebral oedema & brain water content,
    • Increased venous pressure & cerebral blood volume,
    • Reduced CSF absorption
  • High prevalence in obese females
    • Mechanical theory
      • Obesity → ⬆️ intraabdominal pressure → ⬆️ central venous pressure → ⬇️ CSF resorption → ⬆️ ICP
        • However, other studies have indicated that elevated venous pressure may actually be an epiphenomenon to a primary increase in ICP
    • Hormonal theory
      • Adipocytes convert androstenedione → estrone → ⬆️ CSF production
  • Risk factors
    • Metabolic disease
      • Cushing's,
      • Addison's,
      • Hypothyroidism,
      • PCOS,
      • CKD
    • OSA, SLE, anemia, Lyme disease
    • Drugs
      • Retinoids
      • Tetracyclines
      • Growth hormone
      • Lithium
      • Corticosteroids
      • Contraceptives

Diagnostic criteria

Modified Dandy’s diagnostic criteria

  • CSF pressure
    • > 20cm H₂O
      • Pressures > 40 are not uncommon.
    • Some recommend that the pressure should be > 25 to exclude normal.
    • Diurnal variations in CSF pressure may occasionally cause a falsely low (i.e., normal) reading.
      • ∴ If clinical suspicion is high, an LP at a different time of day or continuous ICP monitoring may be required
  • CSF composition
    • Normal glucose and cell count.
    • Protein is normal, or in ≈ two thirds of cases it is low (< 20mg%)
  • Symptoms & signs
    • Due to elevated ICP alone (i.e., papilledema & H/A) with no focal findings.
    • Allowed exception: abducens nerve palsy which may be due to increased ICP
  • Normal radiologic studies of the brain (CT or MRI) with the allowed exceptions of
    • The occasionally seen slit ventricles (the incidence may be no higher in PTC than in age matched controls) or empty sella
    • Infantile form may have generous ventricles and large fluid spaces over brain
    • Intraorbital abnormalities may be identified: see below

IIH diagnostic criteria (Friedman diagnostic criteria)

  • Elevated lumbar puncture pressure ≥ 25cm H₂O
  • Papilledema
  • Normal neurological examination (except sixth cranial nerve palsy)
  • Neuroimaging
    • Normal brain parenchyma (no hydrocephalus mass, structural lesion or meningeal enhancement).
    • Venous thrombosis excluded in all.
  • Normal CSF constituents

IIH without papilledema (IIHWOP) diagnostic criteria

  • Elevated lumbar puncture pressure ≥ 25cm H₂O
  • Unilateral or bilateral CN6 palsy
  • Normal neurological examination
  • Neuroimaging
    • Normal brain parenchyma (no hydrocephalus mass, structural lesion or meningeal enhancement).
    • Venous thrombosis excluded in all.
  • Normal CSF constituents

Suggestion of possible IIHWOP if

  • Normal neurological examination
  • Neuroimaging
    • Normal brain parenchyma (no hydrocephalus mass, structural lesion or meningeal enhancement).
    • Venous thrombosis excluded in all.

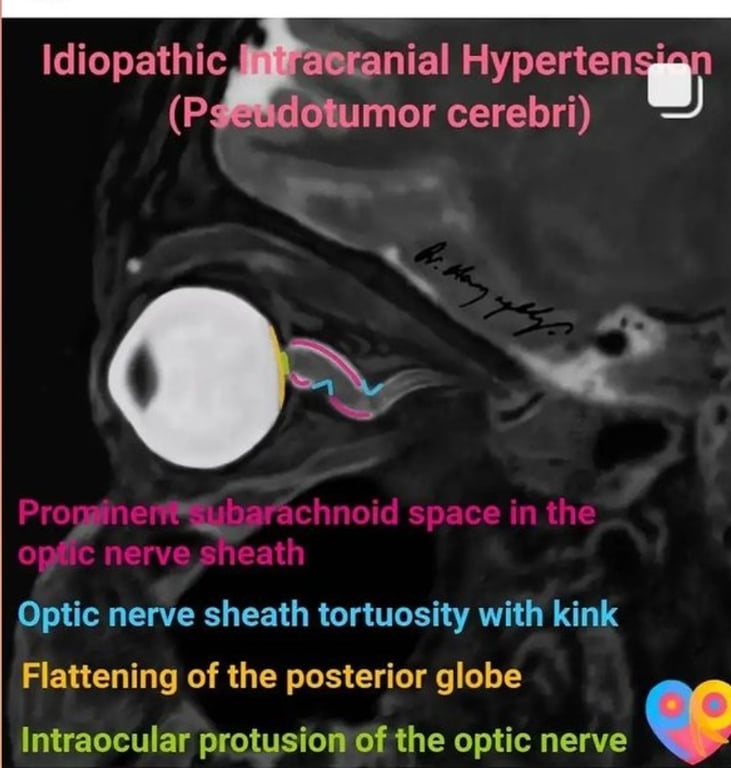

  • 3 neuroimaging finding suggestive of raised intracranial pressure
    • Empty sella
    • Flattening of posterior aspect of the globe
    • Distention of the perioptic subarachnoid space ± a tortuous optic nerve
    • Transverse venous sinus stenosis
  • Normal CSF constituents
  • Elevated lumbar puncture pressure ≥ 25cm H₂O

Associated conditions

General information

  • Some cases of PTC are idiopathic (IIH).
  • “IIH” can be sometimes secondary to some other condition
    • Transverse sinus thrombosis
  • Many conditions cited as being associated with PTC may be coincidental.
  • Four criteria suggested to establish a cause-effect relationship
    • Meets Dandy’s criteria
    • Condition should be proven to increase ICP
    • Treatment of the condition should improve the pseudotumor cerebri
    • Properly controlled studies should show an association between the condition and PTC
  • Likelihood of association between various conditions and PTC based on the number of the criteria met in
    • Proven association
      Meets 4 criteria from Table 47.2
      Obesity
      Likely association
      Meets 3 criteria from Table 47.2
      Drugs: keprone, lindane
      Hypervitaminosis A
      Probable association
      Meets 2 criteria from Table 47.2
      Steroid withdrawalᵃ
      Thyroid replacement in children
      Ketoprofen & indomethacin in Bartter syndrome
      Hypoparathyroidism
      Addison’s diseaseᵃ
      Uremia
      Iron deficiency anemia
      Drugs: tetracycline, nalidixic acid, Danazol, lithium, amiodarone, phenytoin, nitrofurantoin, ciprofloxacin, nitroglycerin
      Possible association
      Meets 1 criterion from Table 47.2
      Menstrual irregularity
      Oral contraceptive useᵇ
      Cushing’s syndrome
      Vitamin A deficiency
      Minor head trauma
      Behçet syndrome
      Unlikely association
      Meets none of the criteria in Table 47.2
      Hyperthyroidism
      Steroid use
      Immunization
      Unsupported association
      Pregnancy
      Menarche
    • ᵃMay respond to steroids
    • ᵇMay be associated with dural sinus thrombosis, see text
  • Other conditions not included in this list that meet minimal criteria but are unconfirmed in case control studies include
    • Other drugs: isotretinoin (Accutane®), trimethoprim-sulfamethoxazole, cimetidine, tamoxifen
    • Systemic lupus erythematosus (SLE)
  • Conditions that may be related by virtue of increased pressure in the dural sinuses (see below)
    • Otitis media with petrosal extension (so-called otitic hydrocephalus)
    • Radical neck surgery with resection of the jugular vein
    • Hypercoagulable states

Associations that have been reported as causing raised Intracranial pressure

Haematological
Anaemia, Polycythaemia vera
Obstruction to venous drainage
Cerebral venous sinus thrombosis
Jugular vein thrombosis
Superior vena cava syndrome
Jugular vein ligation following bilateral radical neck dissection
Increased right heart pressure
Arteriovenous fistulas
Previous infection or subarachnoid haemorrhage causing decreased CSF absorption
Medications
Fluoroquinolones
Tetracycline class antibiotics
Corticosteroid withdrawal
Danazol
Vitamin A derivatives (including isotretinoin and all-transretinoic acid)
Levothyroxine
Nalidixic acid
Tamoxifen
Ciclosporin
Levonorgestrel implant
Lithium
Growth hormone
Indomethacin
Cimetidine
Systemic disorders
Chronic kidney disease/renal failure
Obstructive sleep apnoea syndrome
Chronic obstructive pulmonary disease
Systemic lupus erythematosus
Psittacosis
Endocrine
Addison’s disease
Adrenal insufficiency
Cushing’s syndrome
Hypoparathyroidism
Hypothyroidism
Hyperthyroidism
Syndromic
Down syndrome
Craniosynostosis
Turner syndrome

Natural history

  • Spontaneous resolution is common, sometimes within months, but usually after ≈ 1 year.
  • Papilledema persists in ≈ 15%.
  • Permanent visual loss occurs in 2–24% (depending on criteria used and degree to which it is sought).
  • Persistent H/A may occur in some.
    • Recurs in ≈ 10% after initial resolution.

Clinical features

notion image

Symptoms

Classic (major) symptoms

  • H/A (the most common symptom): 94–99%.
    • Typically retro-ocular and pulsatile.
    • May ⬆️ with eye movement.
    • Severity does not correlate with degree of CSF pressure elevation.
    • Occasionally worse in A.M.
    • Headache attributed to IIH (International Classification of Headache Disorders, 3rd edition)
      • (A) Any headache fulfilling criterion C
        (B) IIH has been diagnosed with lumbar puncture pressure ≥ 25cm CSF
        (C) Evidence of causation demonstrated by at least 2 of
        • Headache developed in temporal relation to IIH
        • Headache relieved by reducing ICP
        • Headache exacerbated in temporal relationship to increased ICP
        (D) Headache not accounted for by another ICHD-3 diagnosis
  • Nausea: 32% (actual vomiting is less common)
  • Visual loss (PTC below)
    • Transient visual obscuration (TVO)
    • Permanent afferent visual pathway injury
  • Diplopia (more common in adults, usually due to VI nerve palsy): 30%

Minor symptoms

  • Neck stiffness: 30–50%
  • Tinnitus
    • The causal relationship with PTC has been demonstrated by resolution of these symptoms with reduction of CSF pressure
    • Up to 60%.
    • Usually pulse synchronous.
    • Described as rushing noise.
    • May be unilateral
      • In these, may be reduced by ipsilateral jugular vein compression + ipsilateral head rotation
  • Ataxia: 4–11%
  • Acral paresthesias: 25%
  • Retrobulbar eye pain on eye movements
  • Arthralgia: 11–18%
  • Dizziness: 32%
  • Fatigue
  • Reduced olfactory acuity

Worsening of any of the above symptoms with postural changes that increase ICP

  • (Bending over, Valsalva maneuver…) is characteristic in idiopathic intracranial hypertension.

Signs

  • Signs are generally restricted to visual system.
  • Conspicuously absent: altered level of consciousness in spite of high ICP
  • Eye findings
    • Papilledema
      • Present in almost ≈ 100%
      • Usually bilateral, occasionally unilateral
      • May be mild (subtle nerve fibre elevation)
      Abducens nerve (Cr. N. VI) palsy
      • 20%;
      • A false localizing sign
      • The esotropia ranges from <5 prism diopters dysconjugate angle in primary gaze to > 50
      Visual acuity
      • Relatively insensitive assessment of visual function
      Visual field defect
      • 9%.
      • Early changes: peripheral fields & nasal quadrant defect
      • Enlarged blind spot (66%) and concentric constriction of peripheral fields (blindness is very rare at presentation)

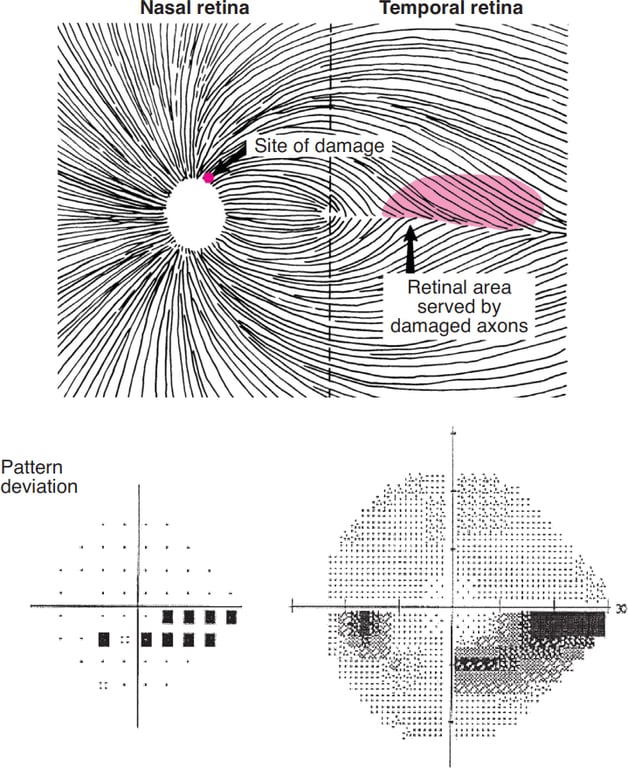

      • Nerves are being stretched over a swollen optic disc causing arcuate scotoma
      Visual loss
      • General information
      • Quoted range of occurrence in PTC
        • 48–68% (lower numbers generally come from population-based samples).
        • A prospective study found changes by Goldman perimetry in 96% of 50 patients.

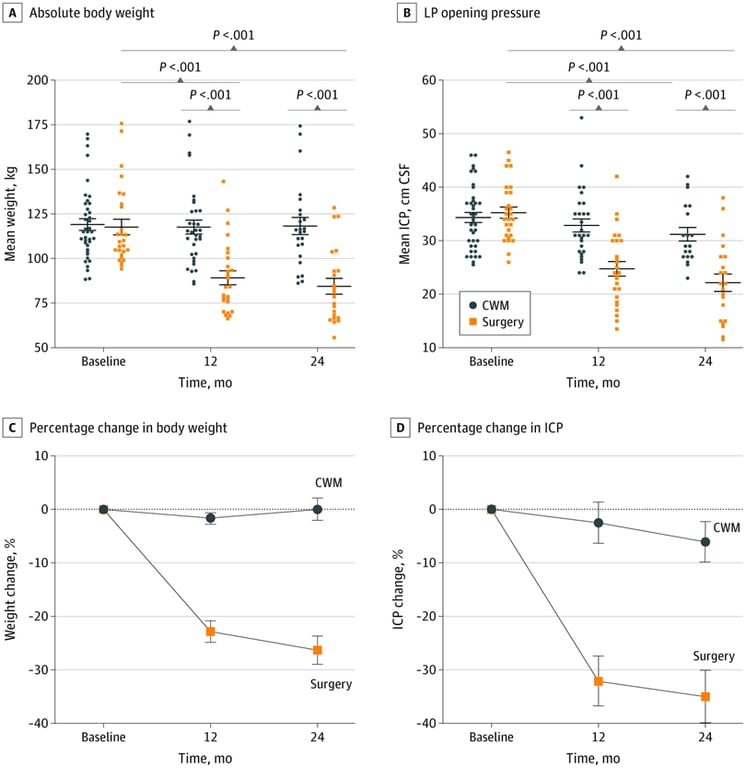

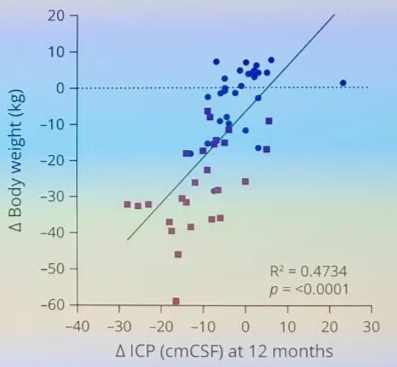

        • The only parameter associated with worsening vision is recent weight gain.
      • Pathomechanics
        • Increased ICP is transmitted along optic nerve sheath → circumferential compression of the retinal ganglion cell axons at the level of the lamina cribrosa.
      • Manifestations
        • Transient visual obscuration's (TVO)
          • Graying or blacking out of vision.
          • Lasts ≈ 1 second.
          • Uni- or bilateral.
          • Typically occur with eye movement, bending over, or Valsalva manoeuvre.
          • Directly proportional to severity of papilledema.
          • Frequency of TVOs parallels ICP elevation, but doesn’t correlate with permanent visual loss
          Visual loss in PTC
          • May occur early or late,
          • May be sudden or gradually progressive,
          • Is not reliably correlated to
            • Duration of symptoms,
            • Papilledema,
            • H/A,
            • Snellen visual acuity, or
            • Number of recurrences.
          • It may escape detection until profound.
          • Time
            • Early
              • Usually constriction of fields and loss of color (∴ perimetry is the best test for following vision in PTC)
            • Late
                • Central vision is affected.
                • Findings include: concentric constrictions, enlargement of the blind spot, inferior nasal defects, arcuate defects, cecocentral scotomas…
                notion image
  • Infantile form may have only enlarging OFC, frequently self-limited, usually requires only follow up without specific treatment

Evaluation

  • Overview: Most tests are intended to rule out conditions that may mimic (or produce) PTC
  • Cerebral imaging: cerebral CT or MRI (see below) scan without and with contrast
  • LP
    • Measure opening pressure (OP) with patient in lateral decubitus position
    • CSF analysis to rule out infection (e.g. fungus, TB, or Lyme disease), inflammation (e.g. sarcoidosis, SLE), or neoplasm (e.g. carcinomatous meningitis)
      • Protein/glucose
      • Cell count
      • Routine & fungal cultures
      • Cytology if suspicion of carcinomatous meningitis
  • Routine labs
    • CBC, electrolytes, PT/PTT
    • W/U for sarcoidosis or SLE if other findings suggestive (e.g. cutaneous nodules, hypercoagulable state…)
notion image

Neuro-ophthalmologic

  • Visual field testing using quantitative perimetry, with evaluation of size of blind spot,
  • Slit-lamp examination ± fundus photographs
  • Look for continuous venous pulsation
notion image

BP to R/O malignant HTN → hypertensive encephalopathy

CT

  • CT without and with IV contrast
    • Is usually adequate to R/O intracranial mass as a possible cause of intracranial hypertension,
    • May miss cases of dural sinus thrombosis.
      • MRI & MRV are preferred.

MRI

  • Intracranial abnormalities are usually absent or minimal
    • No structural mass lesion
  • Features of raised intracranial pressure
    • Slit ventricles
      • Empty Sella in 30– 70%
      notion image
  • Intraorbital findings may be more substantial and include
    • Flattening of the posterior sclera (red dash): 80%
    • Enhancement of the prelaminar optic nerve: 50%
      • Protrusions of the optic nerve heads (red arrows)
    • Distention of the perioptic subarachnoid space (yellow): 45%
    • Vertical tortuosity of the orbital optic nerve: 40%
    • Intraocular protrusion of the prelaminar optic nerve: 30%
    • notion image
notion image
notion image

Venography

  • MR venography (MRV) has largely replaced conventional venography to rule out dural sinus or venous thrombosis.
  • Right transverse sinus is not filling
notion image
  • Stenosis of transverse sinus is due to raised ICP rather than a cause of IIH

Intracranial venous pressure monitoring

  • Measure pressure across the stenosis >8-10mmHg difference → stenting
  • Helps with headaches and lowers pressures

Management

notion image

Aims

  • Treat the underlying disease
  • Protect the vision
    • All patients must have repeated thorough ophthalmologic exams
  • Minimise the headache morbidity.

Stop possible offending drugs

  • e.g. vitamin A

Lifestyle changes

  • Weight loss
    • General information
      • Weight loss is the only disease-modifying therapy in typical IIH
      • All patients with a BMI >30 kg/m2 should be counselled about weight management at the earliest opportunity
      • How much weight should be lost
        • Do not know
        • A weight loss of 6% usually results in complete resolution of papilledema.
        • The year preceding a diagnosis of IIH is associated with 5%–15% wt gain,
        • 15% of weight loss was required to put IIH into remission in one cohort
      • However, resolution may be too slow for acutely threatened vision.
      • Symptoms recur if the weight is regained
      Methods
      • Dieting: uncontrolled studies suggest that this is effective, but it is rarely accomplished or sustained
      • Bariatric surgery: gastric bypass, laparoscopic banding…
          • Treat underlying disease
            • Support weight loss for overweight IIH patients
            • Bariatric surgery
          notion image
      Evidence
      • IHH weight trial : RCT bariatric surgery vs community weight management
          • Women with idiopathic intracranial hypertension and a body mass index of 35 or higher
          • Intracranial pressure measured by lumbar puncture opening pressure at 12 months
          • Bariatric surgery was superior to a community weight loss in lowering intracranial pressure and this is sustained even at 2 years
          notion image

Management recommendations for specific situations

PTC patients with H/A and no visual loss

  • Neurology treatment: medical therapy to control ⬆️ ICP and H/A. ONSF not recommended.
  • Shunting is an option if medical management fails

PTC with visual loss without H/A

  • Mild visual loss: acetazolamide 500–1500 mg/d, follow-up q 2 weeks
  • Moderate visual loss: acetazolamide 2000–3000mg/d, follow-up q week
  • Severe visual loss, moderate visual loss that doesn’t respond to acetazolamide, or optic disc at risk
    • Methylprednisolone 250mg IV q 6 hrs + acetazolamide 1000mg PO BID
    • If no improvement: ONSF. Consider shunt if ICP > 300mm H₂O
  • PTC with visual loss AND H/A: for patients with surgical indications, either surgical procedure is appropriate. Shunting may relieve both problems simultaneously. ONSF may be more reliable to relieve the visual problems (the failure rate may be lower than the shunt malfunction rate) but is not as good for the H/A

IIH W/O Papilledema

  • Symptomatic treatment for H/A, diuretics

PTC in children and adolescents

  • May be seen with withdrawal of steroids used for asthma
  • Search for and correction of underlying Aetiology (offending drugs listed above, hypercalcemia, cancer…)
  • Acetazolamide has been used with success

PTC in pregnancy

  • Women who first present with PTC during pregnancy: resolution of PTC following delivery is common
  • Women who become pregnant during therapy
    • 1st trimester
      • Observation
      • Limitation of weight gain
      • Serial LPs.
      • ❌ Acetazolamide should be avoided because of teratogenicity
    • 2nd & 3rd trimester: acetazolamide has been used safely, but involvement of high-risk obstetrician specialist is advised

Pseudopapilledema

  • (Associated with drusen, etc., in the absence of intracranial hypertension): no interventions.
  • Reassurance and H/A management are employed

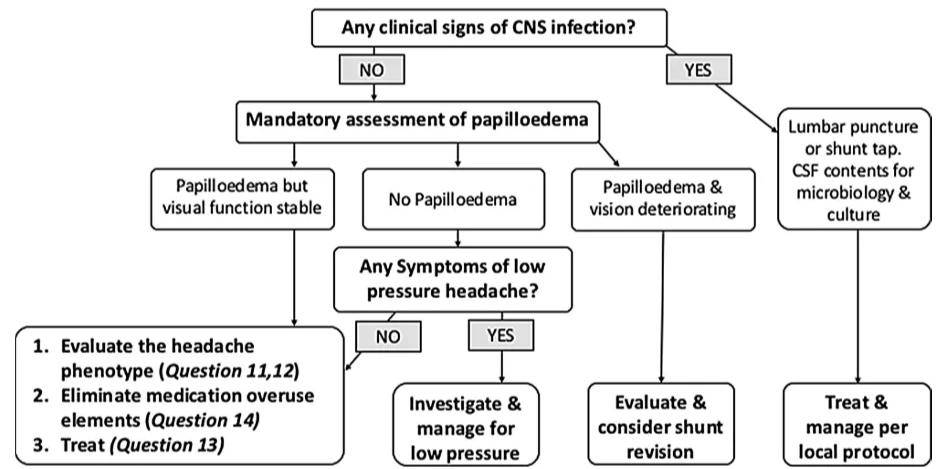

Acute exacerbation of H/A in IIH with known CSF shunt in situ

notion image

Evaluation

  • For all shunted patient with IIH presenting with an acute exacerbation of headaches, funduscopy is mandatory to establish if papilledema exists and where visual function (including formal visual fields) is documented to be worsening, then surgical intervention may be required.
  • For those with atrophic optic nerves further care should be taken to establish whether the headache is secondary to raised intracranial pressure.
  • In those where there is suspicion of infection that may be worsening the headache, CSF should be obtained for microbiological evaluation and any underlying resultant infection appropriately treated.
  • If no papilledema
    • Do not do diagnostic lumbar puncture
      • Unless suspicion of infection
    • Do not routinely CT imaging or shunt X-ray
      • As it won't change management
  • In those with papilledema, some may choose to perform a diagnostic LP.
    • This may be helpful to establish ICP level and may have implications for management choices.
  • In some ICP, monitoring may be useful.

Treatment

  • For patients without current papilledema or imminent risk to vision, shunt revision is not recommended.
  • In shunted patients with deteriorating headaches, low pressure headache and shunt over drainage should be considered.
  • In established over-drainage or low CSF pressure, consideration should be given to the valve settings or tying the shunt off.
  • In the absence of shunt over drainage headache management should be done instead → neurologist
  • Consider medication overuse headache as a cause of acute exacerbation in shunted patients.

Treatment

General information

  • Treatment of asymptomatic PTC patients is controversial as there is no reliable predictor for visual loss.
    • Close follow-up with serial formal visual field evaluation is necessary.
    • Intervention is recommended in unreliable patients, or whenever visual fields deteriorate.
      • It is possible to lose vision without H/A or papilledema
  • Most cases remit by 6–15 weeks, but relapse is common

Medical treatment

  • Fluid and salt restriction
  • Diuretics
    • Slows CSF production
    • Options
      • Carbonic anhydrase (CA) inhibitors
        • Acetazolamide
          • Start at 125–250mg PO q 8–12 hrs, or long acting Diamox Sequels® 500mg PO BID. → Increase by 250mg/day until symptoms improve, side effects occur, or 2 g/day reached.
          • Side effects: (in high doses)
            • Acral paraesthesia (limbs)
            • Nausea
            • Metabolic acidosis
            • Altered taste
            • Renal calculi
            • Drowsiness
            • Rare
              • Stevens-Johnson syndrome
              • Toxic epidermal necrolysis
              • Agranulocytosis
          • CI
            • With allergy to sulfa
            • History of renal calculi
          • Evidence
            • IIH treatment trial 2014
              • N = 165
              • Low-sodium weight-reduction diet + maximally tolerated dosage of acetazolamide (up to 4 g/d) VS
              • Placebo
              • 6 months.
              • In patients with IIH and mild visual loss, the use of acetazolamide with a low-sodium weight-reduction diet compared with diet alone resulted in modest improvement in visual field function.
          Methazolamide
          • Better tolerated but less effective.
          • 50–100mg PO BID-TID.
          • Side effects: similar to acetazolamide
          Topiramate
          • Mechanism
            • Anticonvulsant with secondary inhibition of CA.
          • 200mg PO BID.
          • Side effects
            • Similar to acetazolamide, but can be used in sulfa allergic patients
      • Furosemide
        • Start: 160mg per day in adults, adjust per symptoms and eye exam (not to CSF pressure)
          • If ineffective, double (320 mg/day)
        • Monitor K+ levels and supplement as needed
  • Steroids
    • Used if the above 2 treatment is if ineffective
    • Options
      • Dexamethasone (Decadron®) 12mg/day
      • Prednisone 40– 60mg/day, or
      • Methylprednisolone 250mg IV q 6 hrs.
    • May ⬆️ CSF resorption in cases of inflammation or venous thrombosis.
      • Can be used as temporizing agents for patients awaiting surgery.
    • A reduction in symptoms should occur by 2 weeks, after which time the steroid should be tapered over 2 weeks.
      • Long-term use is not recommended due to (among other things) associated weight gain
  • Managing h/a
    • A neurologist JOB
    • Do not use opioids
      • Lead to opioid induced h/a
    • Short term pain killers for few weeks
      • NSAIDs
        • Indomethacin
      • Paracetamol
    • Acetazolamide has not been shown to be effective for the treatment of headache alone
    • CSF diversion is generally not recommended as a treatment for headache alone in IIH

Surgical therapy

Indication

  • For cases refractory to above, OR
  • Visual loss is progressive or is severe initially OR
  • Unreliable patient
  • DO NOT DO IT FOR MANAGING H/A
    • CSF diversion procedures for the management of headaches should only be carried out in a multidisciplinary setting and following a period of intracranial pressure monitoring.

Serial LPs until remission

  • Serial lumbar punctures are NOT recommended for management of IIH.
    • LPs are associated with significant anxiety in many patients
    • Can led to acute and chronic back pain in some patients
  • Relief of headache in nearly three quarters of patients,
  • 25% remit after 1st LP
  • Technique
    • Remove up to 30ml to halve OP, perform qod until OP< 20cm H₂O, then decrease to q wk (no patient who had remission by 2nd LP had OP>350 on 1st LP).
    • Use a large gauge needle (e.g. 18 Ga) which may help promote a post-LP CSF leak into subcutaneous tissues.
  • LPs may be difficult in obese patients.
  • Revisions may be required in up to 50%.
  • Side effects: include sciatica from nerve root irritation, acquired cerebellar tonsillar herniation, spinal H/A (from intracranial hypotension)

Shunts

VP shunt
  • Preferred
    • Has the lowest revision rate amongst all the other shunts
  • Often difficult since the ventricles are frequently small or slit-like.
    • Stereotactic techniques may make this more technically feasible.
  • Adjustable valves with antigravity or antisiphon devices should be considered for use to reduce the risk of low pressure headaches
    • Start with high pressures and titrate down
      • To prevent subdurals
    • If still having headache after all available titration tell the patient that is all you can do
  • Outcome
    • 50% revision rate
    • Papilledema improves in 50%
    • Headache improves in 70% but may recur
Lumbar shunt
  • Lumboperitoneal;
    • May be difficult in obese patient.
    • May need a horizontal-vertical valve to prevent H/A from intracranial hypotension.
  • Lumbopleural shunt.
    • Visual loss has been reported in patients with functioning LP shunts.
    • Complications
      • Back pain
      • Radiculopathy
      • Tonsillar herniation
      • Scoliosis
Cisterna magna shunt
  • May shunt to vascular system

Optic nerve sheath fenestration

  • Mainly for vision protection and reversal of papilledema
    • Better than shunt in protecting vision (not RCT).
      • Shunt is better than ONSF in helping with headaches as well.
    • No indicated when papilledema has resolved
    • Not for treat other symptoms (e.g. H/A).
      • 1/2 patients show not improvement to h/a

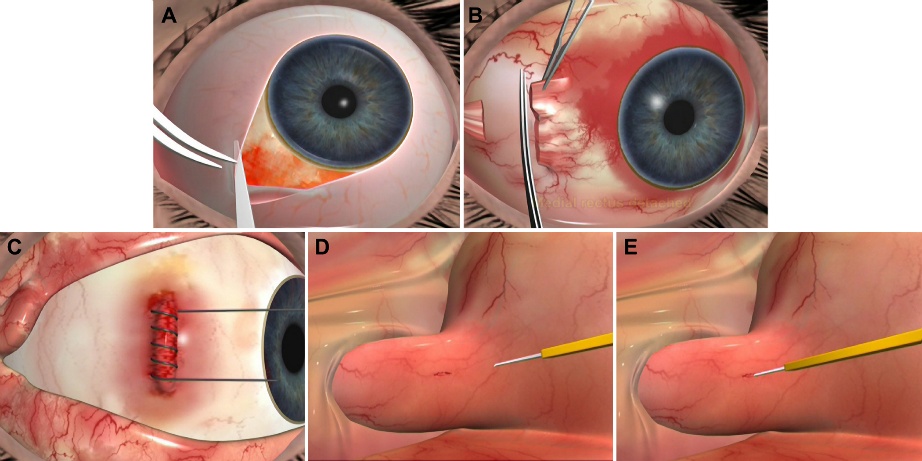

  • Technique
      • Performed via medial or less commonly a lateral orbitotomy or transconjunctival medial approach.
      notion image
  • Has succeeded in cases where visual loss progressed after LP shunting, possibly due to poor communication between orbital and intracranial subarachnoid spaces.
  • Bilateral improvement in vision often occurs after a unilateral procedure
    • May reverse or stabilize visual deterioration and sometimes (but not always) lowers ICP (by continued CSF filtration) and may protect the contralateral eye (if not, contralateral ONSF must be performed).
  • Side effects
    • Pupillary dysfunction,
    • Peripapillary haemorrhage
    • Chemosis,
    • Chorioretinal scarring,
    • Diplopia (usually self-limited) from medial rectus disruption.
  • Outcome
    • 25% revision rate
    • Papilloedema improves in 90%
    • Headache improves in 50%
    • Treatment failure rates
      • 34% of patients at 1 year
      • 45% at 3 years

Decompressive craniectomy

  • Options
    • Subtemporal decompression (main)
    • Suboccipital decompression.
  • Subtemporal decompression
    • Older treatment advocated by Dandy.
    • Fell out of favour (due to because of risk of post-op seizures and painful bulging at decompression site),
    • Can be indicated in patients with slit ventricles and in whom lumbar-peritoneal shunting is not feasible.
    • Usually bilateral “silver-dollar size” craniectomies (approximately 1 inch= 25.4mm) under the temporalis muscle to floor of middle fossa; open dura, cover brain with absorbable sponge (e.g. Gelfoam®), close fascia and muscle watertight, anticonvulsants were started due to risk of post-op seizures.
    • Kessler et al used larger 6–8cm diameter unilateral craniectomies; this larger craniectomy may explain their high incidence (62%) of H/A and tense bulging decompression sites necessitating CSF diversion.

Interventional procedures

  • Venous sinus stenting may be considered for refractory cases.
  • Neurovascular stenting is not currently a treatment for headache in IIH
  • Controversial
    • Transverse sinus stenosis may be an epiphenomenon as a result of increased ICP and not the cause of the increase.
    • Requires antiplatelet therapy afterwards, which may preclude other intervention (e.g. shunting) if it fails

Follow up

  • At least 2 years (with repeat imaging, e.g. MRI) to R/O occult tumour

Differential diagnosis

True mass lesions

  • Tumour, cerebral abscess, subdural hematomas, rarely gliomatosis cerebri may be undetectable on CT and will be misdiagnosed as PTC

Cranial venous outflow impairment

  • Some authors consider these as IIH,18 others do not
  • Dural sinus thrombosis
    • Venous hypertension has often been proposed as a unifying underlying cause of PTC.
    • Abnormalities of the dural sinuses
      • Thrombosis,
      • Stenosis,
      • Obstruction
      • Elevated pressure (reaching levels as high as 40mm Hg)
    • While these findings may underlie a significant number of cases, they may in actuality be epiphenomena (e.g. venous hypertension may be due to compression of the transverse sinuses by elevated intracranial pressure), and it is unlikely that such abnormalities will explain all cases.
  • Congestive heart failure
  • Superior vena cava syndrome
  • Unilateral or bilateral jugular vein or sigmoid sinus obstruction
  • Hyperviscosity syndromes
  • Masson’s vegetant intravascular hemangioendothelioma:
    • An uncommon, usually benign lesion that may rarely involve the neuraxis (including intracranial occurrence).
    • Not definitely neoplastic.
    • Organizing thrombi develop endothelialized projections into the vessel lumen.
    • Must be distinguished from other conditions such as angiosarcoma

Chiari I malformation (CIM)

  • May produce findings similar to PTC.
  • 6% of PTC patients have significant tonsillar ectopia,
  • 5% of PTC patients with CIM have papilledema

Infection (CSF will be abnormal in most of these)

  • Encephalitis
  • Arachnoiditis
  • Meningitis (especially basal meningitis or granulomatous infections, e.g. syphilitic meningitis, chronic cryptococcal meningitis),
  • Chronic brucellosis

Inflammatory conditions

  • Neurosarcoidosis
  • SLE

Vasculitis

  • Behçet’s syndrome

Metabolic conditions

  • Lead poisoning

Pseudopapilledema (anomalous elevation of the optic nerve head) associated with hyperopia and drusen.

  • Drusen: Small yellow deposits of fatty proteins (lipids) that accumulate under the retina
  • Retinal venous pulsations are usually present.
  • Especially deceptive when a patient with migraines has pseudopapilledema
    • Treat the H/A
Drusen
Drusen

Malignant hypertension

  • May produce H/A & bilateral optic disc edema, which can be indistinguishable from papilledema.
  • May also produce hypertensive encephalopathy.
  • Check BP in all PTC suspects

Meningeal carcinomatosis

Guillain-Barré syndrome

  • CSF protein is usually elevated 12. following head trauma

Reference
