Lysosomal storage disease

View Details

Cause

  • Lysosomal enzyme deficiency → accumulation of abnormal metabolic products.
  • ↑ incidence of Tay-Sachs, Niemann-Pick, and some forms of Gaucher disease in Ashkenazi Jews.

Major lysosomal storage disease

Disease
Findings
Deficient enzyme
Accumulated substrate
Inheritance
Clinical features
Sphingolipidoses
Tay-Sachs disease
Progressive neurodegeneration, developmental delay, hyperreflexia, hyperacusis, cherry-red spot on macula A (lipid accumulation in ganglion cell layer), lysosomes with onion skin, no hepatosplenomegaly (vs Niemann-Pick).
(1) Hexosaminidase A ("Tay-Sax")
GM₂ ganglioside
AR
Fabry disease
Early: triad of episodic peripheral neuropathy, angiokeratomas B, hypohidrosis.
Late: progressive renal failure, cardiovascular disease.
(2) α-galactosidase A
Ceramide trihexoside (globotriaosylceramide)
XR
Gaucher disease
Most common. Hepatosplenomegaly, pancytopenia, osteoporosis, avascular necrosis of femur, bone crises, Gaucher cells (lipid-laden macrophages resembling crumpled tissue paper).
(5) Glucocerebrosidase (β-glucosidase); treat with recombinant glucocerebrosidase
Glucocerebroside
AR
Niemann-Pick disease

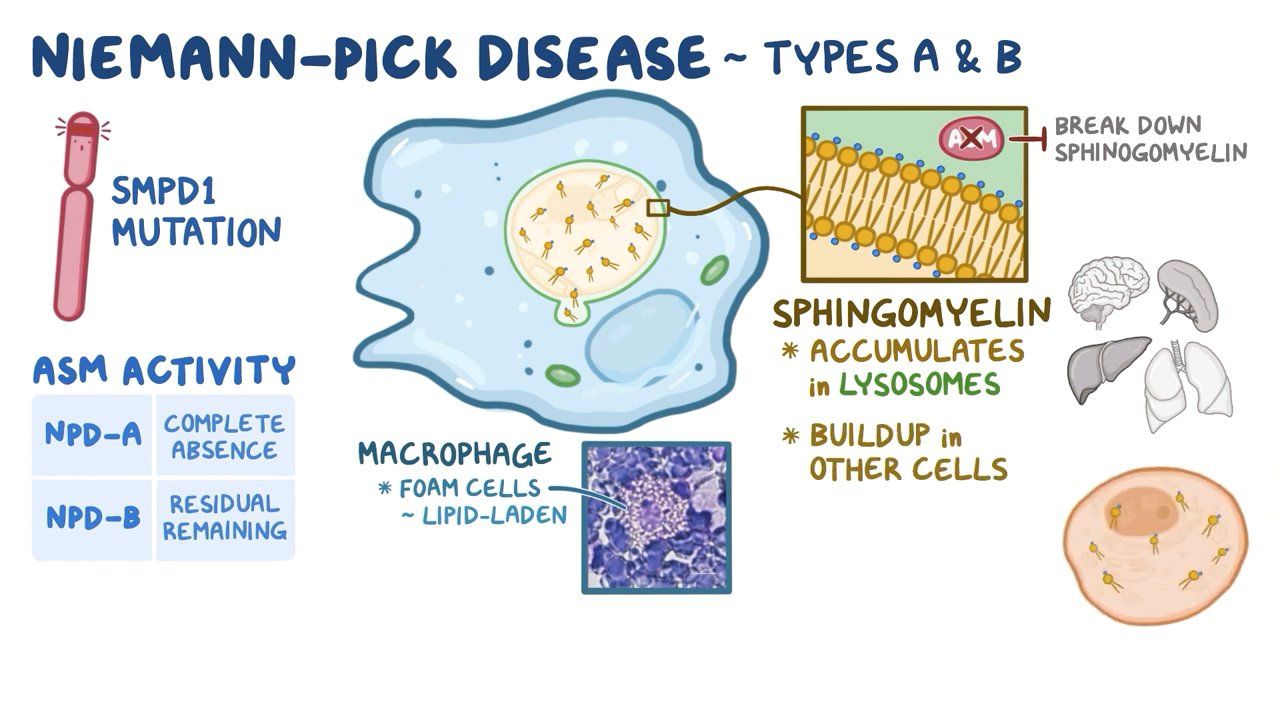

Progressive neurodegeneration, hepatosplenomegaly, foam cells (lipid-laden macrophages) C, “cherry-red” spot on macula A.
(6) Sphingomyelinase
Sphingomyelin
AR
Leukodystrophies
Metachromatic leukodystrophy
Central and peripheral demyelination with ataxia, dementia.
(3) Arylsulfatase A
Cerebroside sulfate
AR
Krabbe disease
Peripheral neuropathy, destruction of oligodendrocytes, developmental delay, CN II atrophy, globoid cells.
(4) Galactocerebrosidase (galactosylceramidase)
Galactocerebroside, psychosine
AR
Mucopolysaccharidoses
Hurler syndrome
Developmental delay, hirsutism, skeletal anomalies, airway obstruction, clouded cornea, hepatosplenomegaly.
α-L-iduronidase
Heparan sulfate, dermatan sulfate
AR
Dwarfism, facial dysmorphism (Gargolylsm), mental retardation, Kyphosis, hearing loss, death by age 10 from respiratory/cardiac complications.
Hunter syndrome
Mild Hurler + aggressive behavior, no corneal clouding.
Iduronate-2-sulfatase
Heparan sulfate, dermatan sulfate
XR
Facial deformity, mild mental retardation, no cardiomegally, no Kyphosis, hearing loss, Mongolian blue spot, X-linked recessive.
Sanfilippo syndrome
4 different types of enzyme, different types giving 4 types
Heparan sulfate
AR
Learning difficulties and behavioural problems,
Dementia → vegetative → death
Sanfilippo syndrome A
Initially symptom-free, then progressive intellectual decline/speech delay, hyperactivity and sleep disturbance followed by motor disease. Death in third decade.
Heparan sulfamidase
Heparan sulfate
Sanfilippo syndrome B
N-Acetylglucosaminidase
Sanfilippo syndrome C
Heparan-α-glucosaminide
N-acetyltransferase
Sanfilippo syndrome D
N-Acetylglucosamine-6-sulfatase
Morquio syndrome
Severe skeletal dysplasia
• Incompetence of the odontoid process
• Os odontoideum
short stature, cord compression, cardiac abnormalities, corneal clouding, death early age
Galactose-6-sulfate sulfatase
Keratan sulfate
AR
Morquio syndrome A
Severe skeletal dysplasia, short stature, cord compression, cardiac abnormalities, corneal clouding, death at an early age.
Galactose-6-sulfate sulfatase
Keratan sulfate, chondroitin 6-sulfate
Morquio syndrome B
β-Galactosidase
Keratan sulfate
Maroteaux-Lamy syndrome
Normal intellectual development, but shares features of Hurler syndrome.
N-Acetylgalactosamine-4-sulfatase
Dermatan sulfate
Sly syndrome
Hydrops fetalis but those that survive to birth have similar to Hurler syndrome
β-glucoronidase
Heparan sulfate, dermatan sulfate, chondroitin 6-sulfate
Natowicz syndrome
Short stature, periarticular soft tissue masses
Hyaluronidase
Hyaluronic acid

Images

notion image
notion image
notion image
notion image
Hurler syndrome
Hurler syndrome
Hurler syndrome
Hurler syndrome
Hunter syndrome
Hunter syndrome

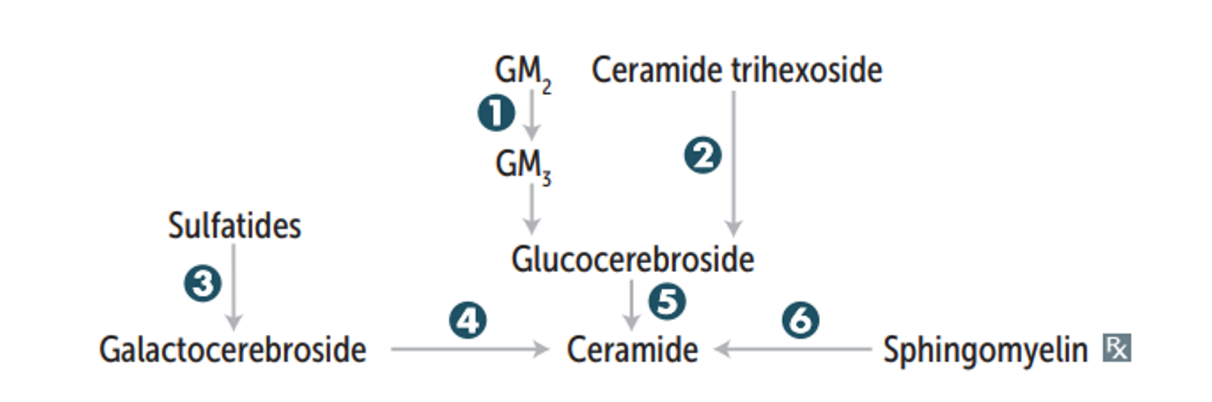

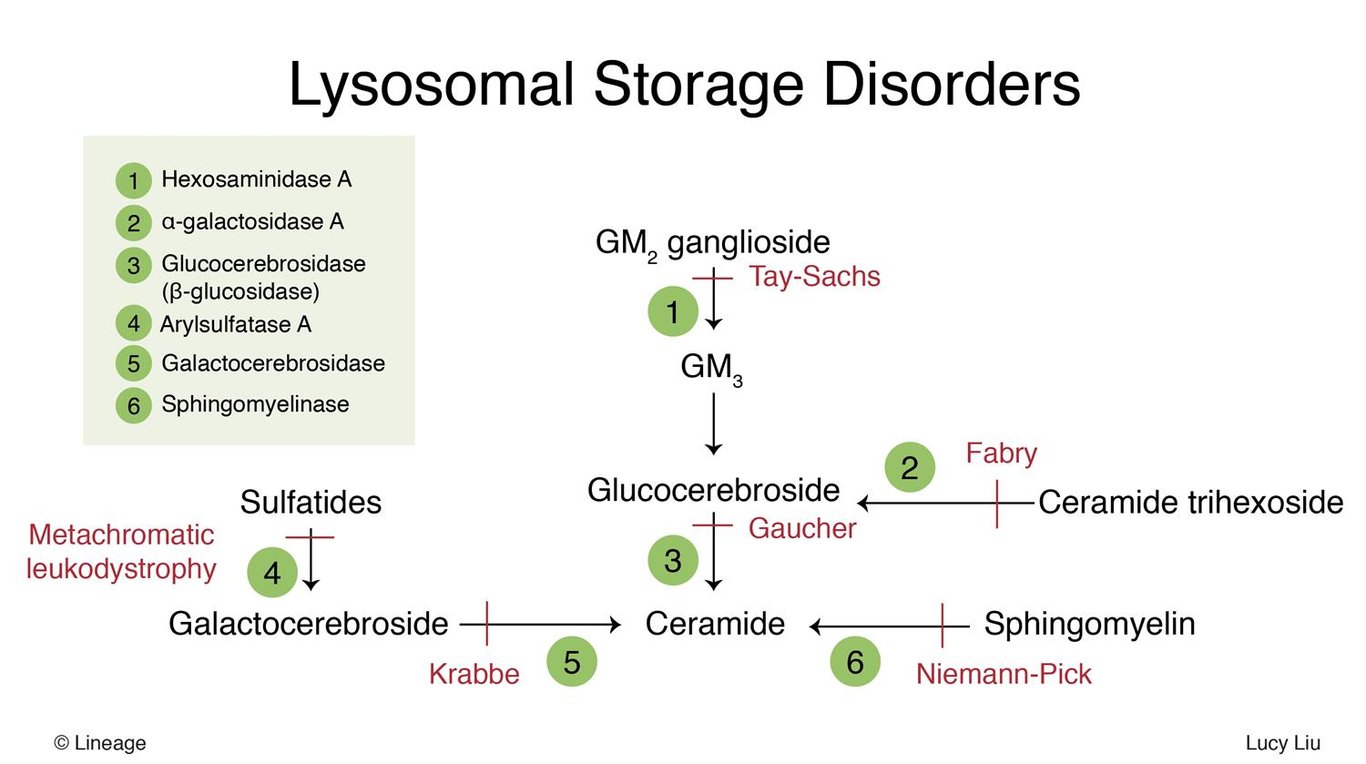

Enzyme conversion
Enzyme conversion
Enzyme conversion
Enzyme conversion

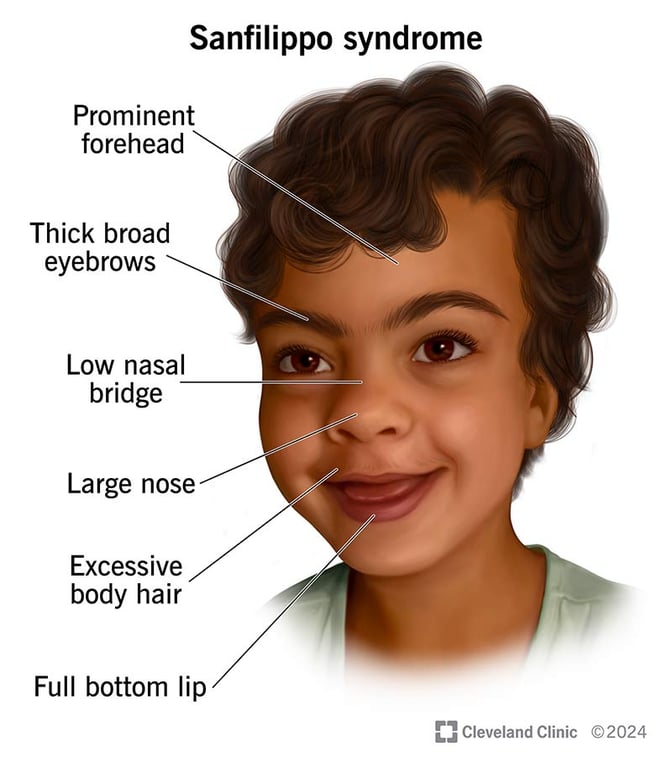

Sanfilippo syndrome
Sanfilippo syndrome
Sanfilippo syndrome
Sanfilippo syndrome

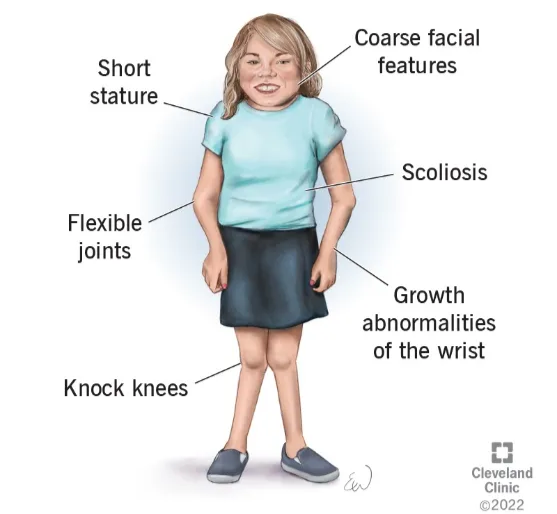

Morquio Syndrome
Morquio Syndrome
Morquio Syndrome
Morquio Syndrome
