Interhemispheric Craniotomy

View Details
logo
Parent item
Convexity approaches

General

  • Anterior or posterior interhemispheric craniotomy provides access to deep midline parafalcine and paraventricular spaces through the natural interhemispheric fissure.
  • Benefits
    • Minimal need for brain retraction
    • Minimal need for brain transgression,
  • Disadvantage
    • Deep and narrow working corridor → technically challenging.
  • Craniotomy is situated around the
    • Coronal suture (when using a frontal interhemispheric route) OR
    • Behind the central lobule (when using the superior parietal interhemispheric route)
      • To protect the (typically 3-4 cm posterior to the coronal suture)
        • Sensorimotor cortices and
        • Dominant numerous parasagittal veins,
          • Sacrifice of the large parasagittal bridging veins may lead to venous infraction and hemiparesis.
  • Fixed retractors must be avoided through the use of dynamic or gravity induced retraction (with the patient in a lateral position) and early cerebrospinal fluid (CSF) drainage (via lumbar drainage or a ventriculostomy) to mobilize the hemisphere away from the midline.
  • Modifications of the interhemispheric route may expand the traditional confinements of the operative corridor through this pathway.

General 2

  • 6cm craniotomy: 2cm posterior to coronal and 4 cm anterior to coronal
  • Important to identify both pericallosal arteries so you dont pull the left one to the right and cause stenosis and ischaemia
  • Transeptal/interfoniceal or trans munro
  • Subchoroidal, then open the fissure into the munro
  • Check for cortical vessel
    • 1.5 (max 2cm) callosotomy
  • Meyers atlas book
      • Free

Indications for the Approach

  • Anterior interhemispheric craniotomy
    • The typical pathologies uncovered through this approach include
      • Parafalcine meningiomas,
      • Medial hemispheric gliomas,
      • Distal anterior cerebral artery aneurysms,
      • Metastases,
      • Arteriovenous malformations,
      • Tumours in and near the anterior third ventricle such as
        • Colloid cysts,
        • Hypothalamic hamartomas,
        • Craniopharyngiomas.
  • Posterior interhemispheric craniotomy
    • For posterior third ventricular masses,
      • The craniotomy is centered over the coronal suture + a more posterior callosotomy is necessary.
    • Posterior thalamic tumors and pineal region masses with predominantly superior extension
      • Working around the internal cerebral veins
    • Pericallosal aneurysm depends on the location of the aneurysm relative to the genu of the corpus callosum.
      • For aneurysms that are below the genu,
        • A low interhemispheric approach is preferred in order to secure proximal vascular control.
  • Not to be used for
    • Lesions primarily affecting the ipsilateral thalamus or caudate nucleus
      • As the lateral trajectory of the interhemispheric approach is limited
        • Rather should use contralateral interhemispheric or ipsilateral transcortical corridors for such laterally located lesions.

Preoperative Considerations

  • CSF drainage
    • Lumbar drain > EVD
      • As basal cisterns and the ventricles are often not readily accessible during dissection of the interhemispheric fissure
    • Indicated for large tumors such as parafalcine meningiomas
    • Aid brain relaxation and mobilization of the tumor and its devascularization at the level of the falx early in surgery.
    • 30-40 cc of CSF is drained gradually during craniotomy
  • Venous sinus study
    • SSS and corresponding bridging veins should be evaluated on preoperative MRI, (or CTV/MRV)
    • Although the involved venous structures along the anterior 1/3 of the SSS are considered safe for ligation, the risk of significant venous infarcts persists.
      • Therefore, manipulation and sacrifice of these venous structures must be kept to a minimum.
    • In parafalcine tumours
      • If there are numerous large parasagittal veins draining into the sagittal sinus overlying the parafalcine tumor, it would be ill-advised to ligate these veins;
        • Instead, a contralateral interhemispheric transfalcine approach can be an option.
      • Parafalcine meningiomas typically do not require ligation of the superior sagittal sinus, but if they are found to infiltrate the sinus, appropriate precautions for avoidance and management of air embolism is mandatory preoperatively.
  • Mannitol 1g/kg is administered during skin incision.

Positioning

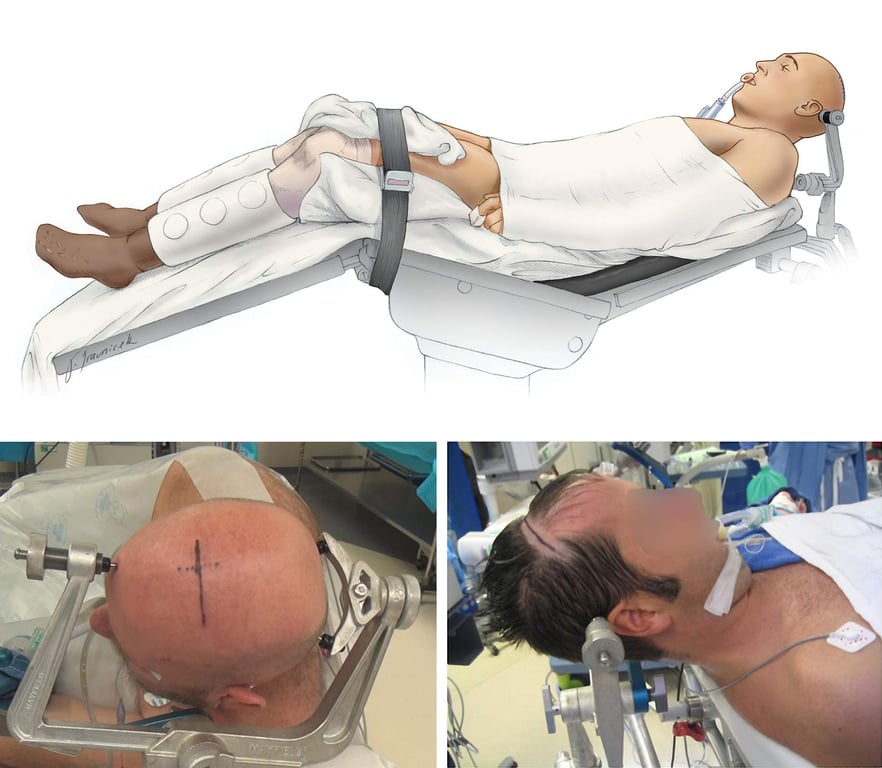

  • The patient may be placed
    • Supine position (right lower image)
      • More readily orients the operator to the midline structures
    • Lateral position (left lower image)
      • Allows gravity retraction to mobilize the dependent (ipsilateral) hemisphere.
  • Neck position
    • Neck extended
      • To allow early proximal control for pericallosal aneurysm,
        • Between the anterior communicating artery and the genu of corpus callosum.
      • The location of the lesion in relation to the genu determines the degree of neck extension.
        • In the case of a tumor, the lesion should be positioned as high as possible within the operative field.
    • A slightly flexed neck
      • For pericallosal aneurysm just above the level of the genu
    • A colloid cyst at the foramen of Monro is accessible through the transcallosal approach (right image). The transcallosal route provides a panoramic view of the choroid plexus and internal cerebral and thalamostriate veins.
Figure 5: The patient may be placed supine or in the lateral position. The supine position more readily orients the operator to the midline structures (right lower image), whereas the lateral position (left lower image) allows gravity retraction to mobilize the dependent (ipsilateral) hemisphere. In the case of a pericallosal aneurysm, the patient’s head is extended to achieve proximal control between the anterior communicating artery and the genu of corpus callosum. In the case of a tumor, the lesion should be positioned as high as possible within the operative field.


Skin incision

  • The location of the linear incision is determined by the exact location of the lesion.
  • For the anterior interhemispheric approach behind the hairline
    • A curvilinear (blue)
    • Horseshoe (green)
      • In relation to the coronal suture
        • One-third behind
        • Two-thirds anterior
      • Crosses the midline
    • Bone removal over the superior sagittal sinus will allow lateral mobilization of the sinus using retraction sutures in the falx to expand the interhemispheric corridor.
    • For larger tumors, a U-shaped incision is more appropriate. Notice the location of the pins of the skull clamp.

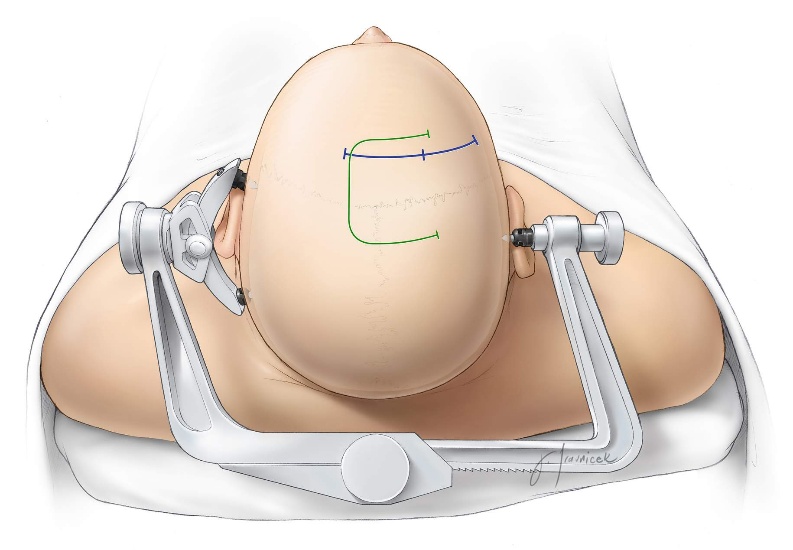

Figure 7: For the anterior interhemispheric approach, the skin incision is made in a curvilinear (blue) or horseshoe (green) fashion behind the hairline. The location of the linear incision is determined by the exact location of the lesion. The horseshoe incision is one-third behind and two-thirds anterior to the coronal suture and crosses the midline. Bone removal over the superior sagittal sinus will allow lateral mobilization of the sinus using retraction sutures in the falx to expand the interhemispheric corridor. For larger tumors, a U-shaped incision is more appropriate. Notice the location of the pins of the skull clamp.


Craniotomy

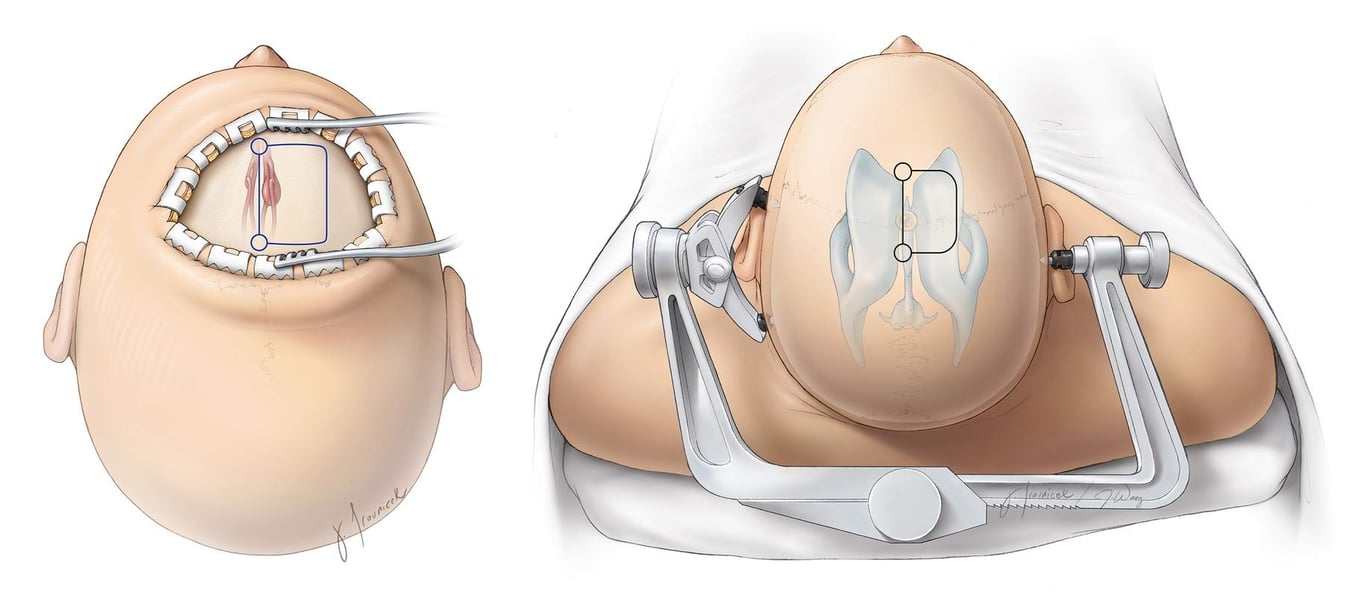

  • A right paramedian craniotomy is outlined for pericallosal aneurysms (left image) or may be applied for intraventricular tumors (right image).
  • Neuronavigation is helpful in planning the craniotomy and callosotomy.
  • Note that the burr holes are placed on the venous sinus, and the width of the sinus is partially exposed to allow gentle rotation of the dural sinus after dural opening.
Figure 8: A right paramedian craniotomy is outlined for pericallosal aneurysms (left image) or may be applied for intraventricular tumors (right image). Neuronavigation is helpful in planning the craniotomy and callosotomy. Note that the burr holes are placed on the venous sinus, and the width of the sinus is partially exposed to allow gentle rotation of the dural sinus after dural opening.

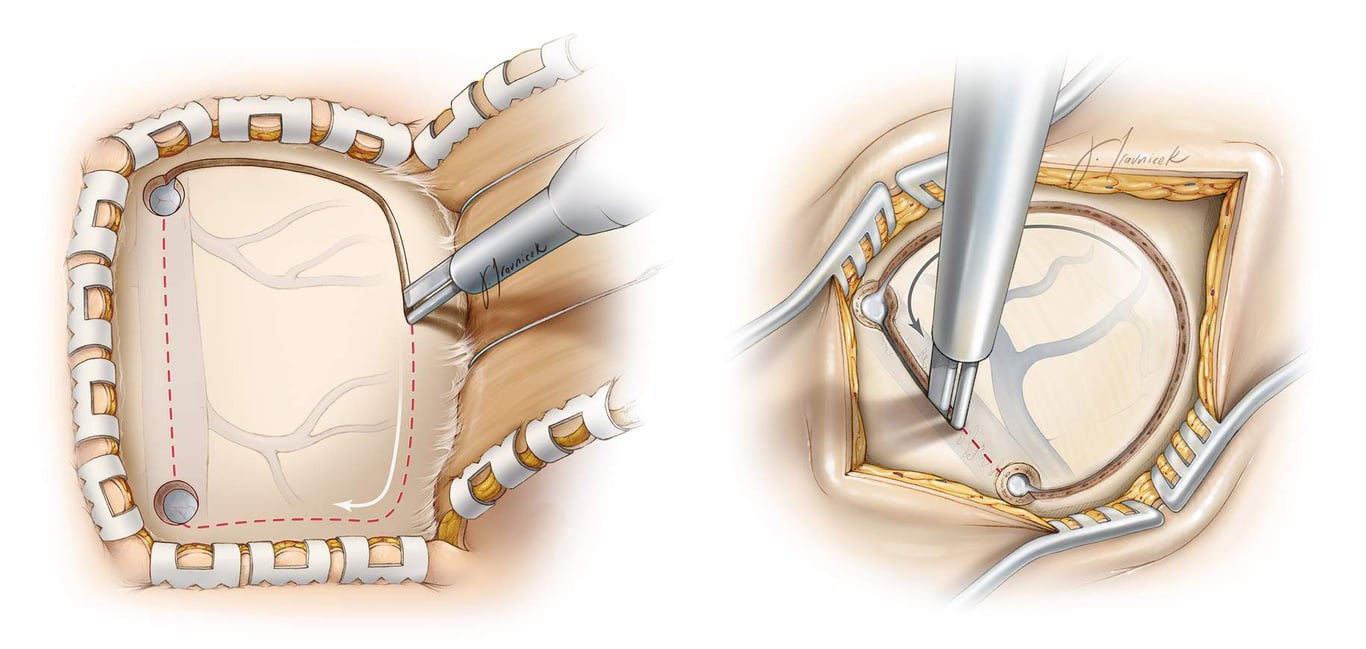

  • After I complete two burr holes over the sinus, I use a #3 Penfield dissector to generously separate the dura from the inner table of the calverium underneath the craniotomy and especially over the sinus.
  • The final bone cut is made along the sinus to allow timely elevation of the flap if injury to the sinus occurs.
  • Large strips of surgicel or gelfoam should be available to cover the sinus for hemostasis.
  • Cerebrospinal fluid drainage through the lumbar drain allows the sinus and dura to fall away from the inner table of the skull and prevents unintentional sinus injury or durotomies.
Figure 9: After I complete two burr holes over the sinus, I use a #3 Penfield dissector to generously separate the dura from the inner table of the calverium underneath the craniotomy and especially over the sinus. The final bone cut is made along the sinus to allow timely elevation of the flap if injury to the sinus occurs. Large strips of surgicel or gelfoam should be available to cover the sinus for hemostasis. Cerebrospinal fluid drainage through the lumbar drain allows the sinus and dura to fall away from the inner table of the skull and prevents unintentional sinus injury or durotomies.

Durotomy

  • The dura is opened in a U-shaped flap based on the sagittal sinus (top image-supine position).
  • Retraction sutures in the superior falx rotate the venous sinus laterally and expand the interhemispheric reach.
  • Some small bridging veins may be sacrificed, but the larger ones should be preserved.
  • Note that gravity retraction facilitates mobilization of the dependent hemisphere away from the midline (bottom image-lateral position).

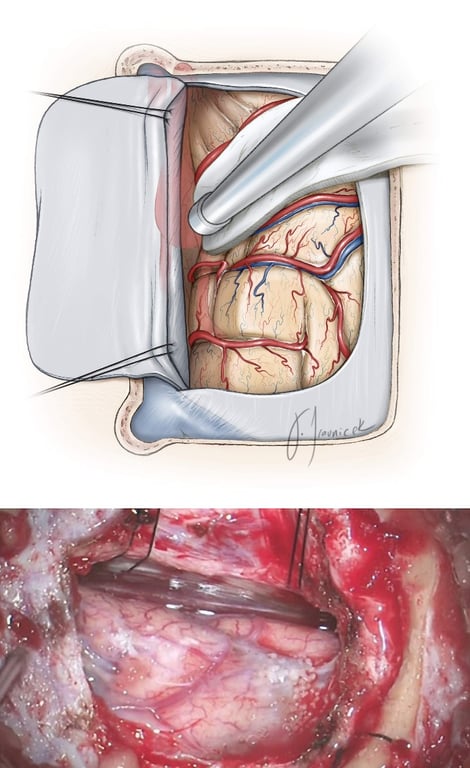

Figure 10: The dura is opened in a U-shaped flap based on the sagittal sinus (top image-supine position). Retraction sutures in the superior falx rotate the venous sinus laterally and expand the interhemispheric reach. Some small bridging veins may be sacrificed, but the larger ones should be preserved. Note that gravity retraction facilitates mobilization of the dependent hemisphere away from the midline (bottom image-lateral position).

Cingulum separation

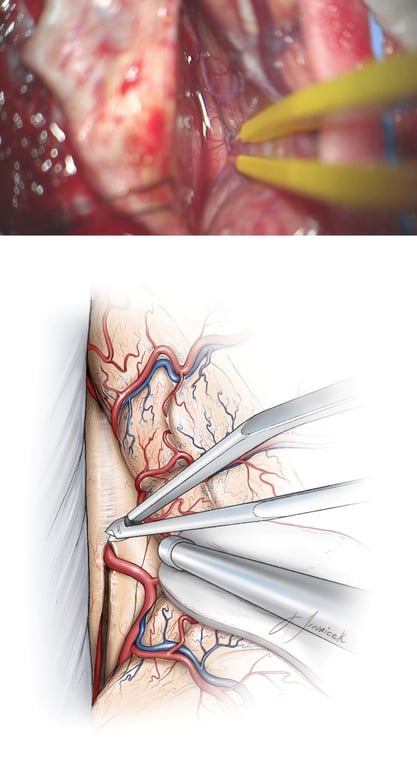

  • The subdural portion of the dissection is completed along the falx and the ipsilateral callosomarginal artery is traced along the midline to the level of the cingulum (top image).
  • This artery will define the midline dissection planes so the surgeon can avoid subpial injury to the adherent cortices of the cingula through meticulous and sharp microsurgical techniques (bottom image).
Figure 11: The subdural portion of the dissection is completed along the falx and the ipsilateral callosomarginal artery is traced along the midline to the level of the cingulum (top image). This artery will define the midline dissection planes so the surgeon can avoid subpial injury to the adherent cortices of the cingula through meticulous and sharp microsurgical techniques (bottom image).
  • Note the difference in color between the cingulate gyrus (small arrow) and the corpus callosum (large arrow).
  • Very adherent cingulate cortices may be mistaken as corpus callosum.
  • The corpus callosum is glistening white and stands out from the surrounding cortical tissue.
  • Releasing CSF from the lumbar drain will ease this interhemispheric dissection.
  • The operator should watch for the pericallosal arteries and avoid inadvertently injuring them with the tip of the microscissors.
Figure 12: Note the difference in color between the cingulate gyrus (small arrow) and the corpus callosum (large arrow). Very adherent cingulate cortices may be mistaken as corpus callosum. The corpus callosum is glistening white and stands out from the surrounding cortical tissue. Releasing CSF from the lumbar drain will ease this interhemispheric dissection. The operator should watch for the pericallosal arteries and avoid inadvertently injuring them with the tip of the microscissors.

Callosotomy

  • The corpus callosum is widely exposed in the midline between the paired pericallosal arteries.
  • Adherent arachnoid membranes of the cingula are sharply and widely split anteriorly and posteriorly to minimize retraction on the medial hemispheres.
  • At times, pericallosal arteries may be displaced to one side or they may also adhere together, making their separation difficult

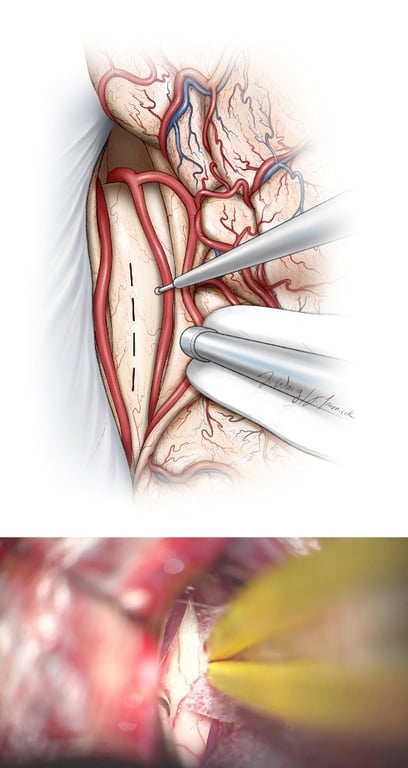

Figure 13: The corpus callosum is widely exposed in the midline between the paired pericallosal arteries. Adherent arachnoid membranes of the cingula are sharply and widely split anteriorly and posteriorly to minimize retraction on the medial hemispheres. At times, pericallosal arteries may be displaced to one side or they may also adhere together, making their separation difficult.

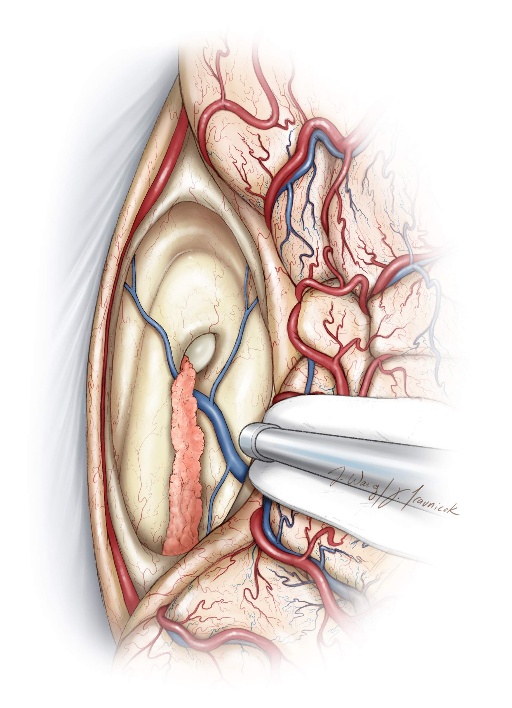

  • A 1.5-cm callosotomy will provide wide visualization of the
    • Foramen of Monro and
    • Choroid,
    • Internal cerebral,
    • Thalamostriate veins
    • Colloid cyst
  • Neuronavigation guides the precise location of the callosotomy.
  • If the septum pellucidum herniates into the operative field and obstructs intraventricular viewing, its fenestration will relieve this herniation and clear the view.
    • This herniation is caused by biventricular obstruction at the level of the foramen of Monro.
notion image
  • The roadmap through the interhemispheric trajectory toward the midline chambers is demonstrated.
  • Note the sagittal perspective in the above image. It is easy for the surgeon to become disoriented and travel too anteriorly or posteriorly (arrows) along the interhemispheric space.
    • Navigation can keep the surgeon on track.
  • The hashed lines correspond to the landmark levels of dissection in the coronal illustration (bottom image).
    • These levels include the
        1. Cingulum
        1. Corpus callosum
        1. Fornices
  • If the surgeon is not directing the center of dissection toward the surgical target, additional disruption of normal tissues is later necessary for re-directing the center of dissection

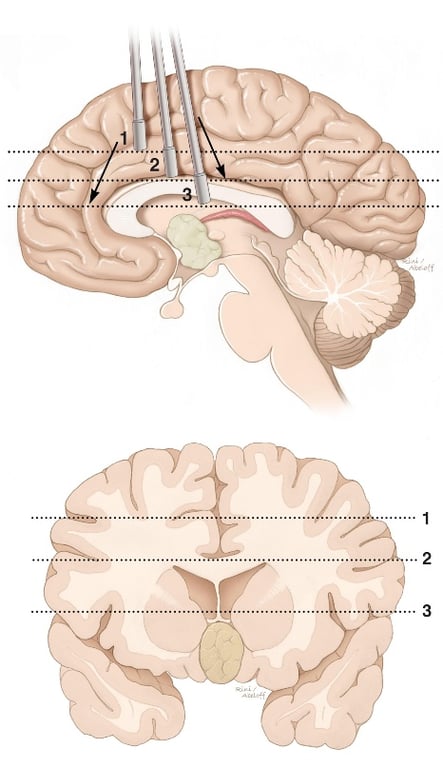

Figure 15: The roadmap through the interhemispheric trajectory toward the midline chambers is demonstrated. Note the sagittal perspective in the above image. It is easy for the surgeon to become disoriented and travel too anteriorly or posteriorly (arrows) along the interhemispheric space. Navigation can keep the surgeon on track. The hashed lines correspond to the landmark levels of dissection in the coronal illustration (bottom image). These levels include the cingulum (1), corpus callosum (2) and fornices (3). If the surgeon is not directing the center of dissection toward the surgical target, additional disruption of normal tissues is later necessary for re-directing the center of dissection.

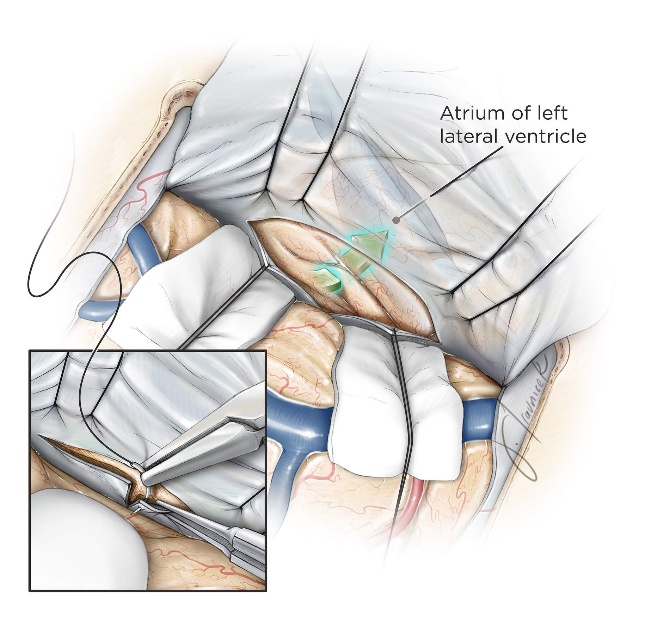

  • If the contralateral hemisphere must be accessed,
    • A T-shaped incision within the falx and reflect the falcine flaps using stay sutures (inset image).
      • This cross-court trajectory (green arrow) expands the lateral operative angles.
    • The above sketch shows the posterior interhemispheric transfalcine transprecuneus approach for reaching lesions within the atrium

Figure 16: If the contralateral hemisphere must be accessed, I make a T-shaped incision within the falx and reflect the falcine flaps using stay sutures (inset image). This cross-court trajectory (green arrow) expands the lateral operative angles. The above sketch shows the posterior interhemisperic transfalcine transprecuneus approach for reaching lesions within the atrium.

Extending the foramen of Munro opening (3 ways)

  • Transforaminal
  • Transchoroidal transvelum interpositum
      • Ideally suited to access the foramen of Monro and the middle and posterior thirds of the third ventricle. Exposure of the anterior third ventricle was limited by the columns of the fornix and by the presence of parietal cortical draining veins.
      • The dorsomedial nucleus of thalamus can be damaged when performing this opening

      C ornix Caud. Nuc For. Monr Thalamus Tenia F dy F rnix
      The transchoroidal exposure is begun by dividing the tenia fornix that attaches the choroid plexus to the margin of the fornix. The tenia thalami that attaches the choroid plexus to the thalamus is not opened.
  • Transeptal/Interfoniceal
    • The septum pellucidum is identified and split strictly midline by blunt dissection until the thick fibers of the fornix were visible.
    • The interforniceal raphe division was also dissected in a blunt manner from the level of the foramen of Monro to the junction between the column of the fornix and the anterior commissure.
    • Care was taken not to dissect too far anteriorly beyond the anterior commissure or posterior to the foramen of Monro.

Closure

  • Once hemostasis is achieved, the dura is closed in a watertight fashion.
  • Surgicel or gelfoam on the superior sagittal sinus should not be removed.
  • A ventricular catheter may be required briefly during the postoperative period to clear ventricular debris if the ventricles were entered during surgery.

Postoperative Considerations

  • Patients are observed in the Intensive Care Unit for 1 or 2 days before they are transferred to the wards.
  • Hypertension and overmedication with narcotics must be avoided.
  • The ventriculostomy catheter is usually removed on the 2nd postoperative day.

Pearls and Pitfalls

  • Placement of the patient in the lateral position during surgery is advantageous for gravity retraction, but may disorient some operators regarding the normal ventricular anatomy.
  • Extension of the craniotomy across the superior sagittal sinus allows placement of retraction sutures along the superior falx and gentle rotation of the venous sinus to expand the interhemispheric operative corridor.
  • Meticulous and sharp microsurgical maneuvers will enable the surgeon to avoid subpial injury to the cortices of the cingula.
  • Aggressive retraction must be avoided by obtaining CSF drainage through a lumbar drain or a ventriculostomy catheter.

Operative Anatomy

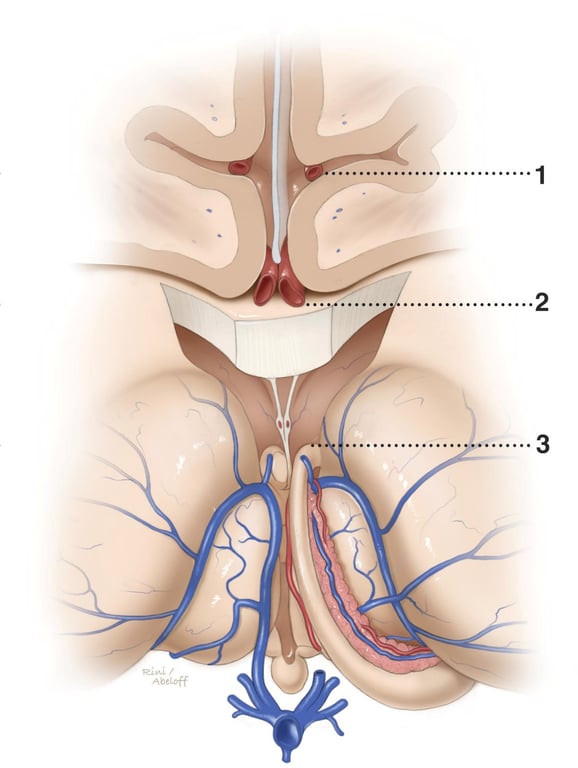

A coronal non-operative view of the surgical trajectory for the interhemispheric corridor toward the midline deep surgical targets is demonstrated.
  • Important landmark structures include the
      1. Cingulum
      1. Corpus callosum
      1. Fornices
  • The cerebrovascular structures in each dissection level should be carefully preserved.
  • The diencephalic deep veins are of special importance to avoid surgical morbidity.
An understanding of parasagittal venous anatomy is important for execution of this approach.
Figure 2: A coronal non-operative view of the surgical trajectory for the interhemispheric corridor toward the midline deep surgical targets is demonstrated. Important landmark structures include the cingulum (1), corpus callosum (2) and fornices (3). The cerebrovascular structures in each dissection level should be carefully preserved. The diencephalic deep veins are of special importance to avoid surgical morbidity.
The venous anatomy around the coronal suture.
  • The parasagittal veins are sparse anterior to the coronal suture.
    • Therefore, an interhemispheric craniotomy, mostly anterior to the suture, avoids these important veins.
  • A large bridging vein just posterior to this suture drains the frontal lobes
Figure 3: The venous anatomy around the coronal suture. The parasagittal veins are sparse anterior to the coronal suture. Therefore, an interhemispheric craniotomy, mostly anterior to the suture, avoids these important veins. A large bridging vein just posterior to this suture drains the frontal lobes (Images courtesy of AL Rhoton, Jr).
Superior view of the interhemispheric fissure.
  • The right frontal lobe is retracted laterally to expose the bilateral distal anterior cerebral artery (A.C.A.) branches and the corpus callosum (which is bright white compared with the cingulate cortex-upper images).
  • The cortices of bilateral cingula can be very adherent to each other and may be mistaken for the corpus callosum.
  • The callosomarginal artery may be used as a road map to reach the pericallosal arteries.
  • Notice that this view (left lower image) was achieved without sacrificing any bridging veins, but instead through untethering them from their surrounding arachnoid membranes. Callosotomy allows exposure of the ventricle (right lower image)

Figure 4: Superior view of the interhemispheric fissure. The right frontal lobe is retracted laterally to expose the bilateral distal anterior cerebral artery (A.C.A.) branches and the corpus callosum, which is bright white compared with the cingulate cortex (upper images). The cortices of bilateral cingula can be very adherent to each other and may be mistaken for the corpus callosum. The callosomarginal artery may be used as a road map to reach the pericallosal arteries. Notice that this view (left lower image) was achieved without sacrificing any bridging veins, but instead through untethering them from their surrounding arachnoid membranes. Callosotomy allows exposure of the ventricle (right lower image)(Images courtesy of AL Rhoton, Jr).
