Neurosurgery notes/Procedures/Cranial procedures/CSF procedures/Shunts/Shunts companies/Medtronic

Medtronic

View Details
logo
Parent item
Shunts companies

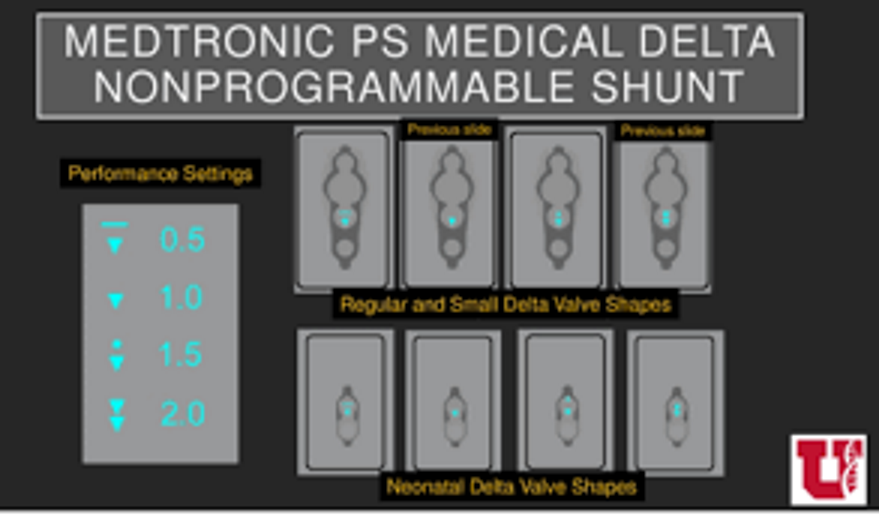

Medtronic delta (fixed)

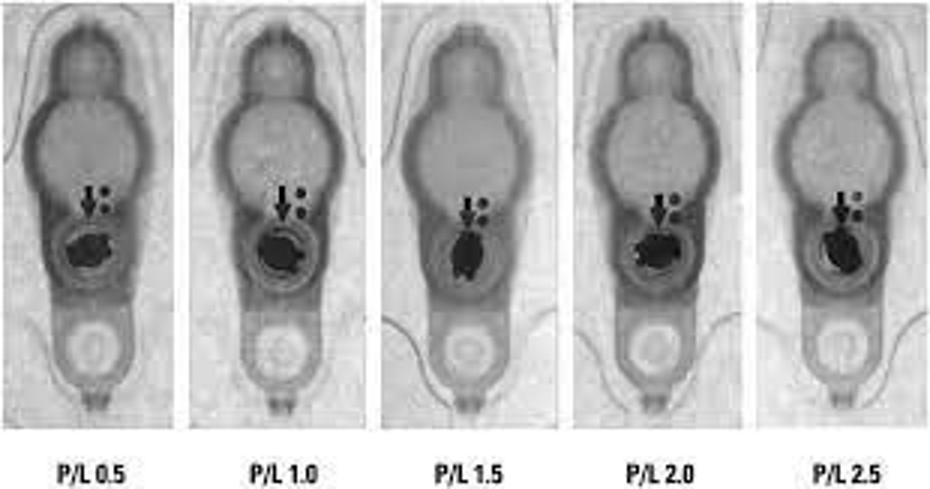

Strata II valve
Valve performance level
Opening pressure while lying (cm H₂O)
Opening pressure while standing (cm H₂O)
0.5
1.5
3.0
1.0
3.5
5.0
1.5
7.0
8.5
2.0
10.5
12.0
2.5
13.5
14.7
Strata NSC valve
Valve
Opening pressure (cm H₂O)
0.5
1.5
1.0
3.5
1.5
9.0
2.0
14.5
2.5
20.0
notion image

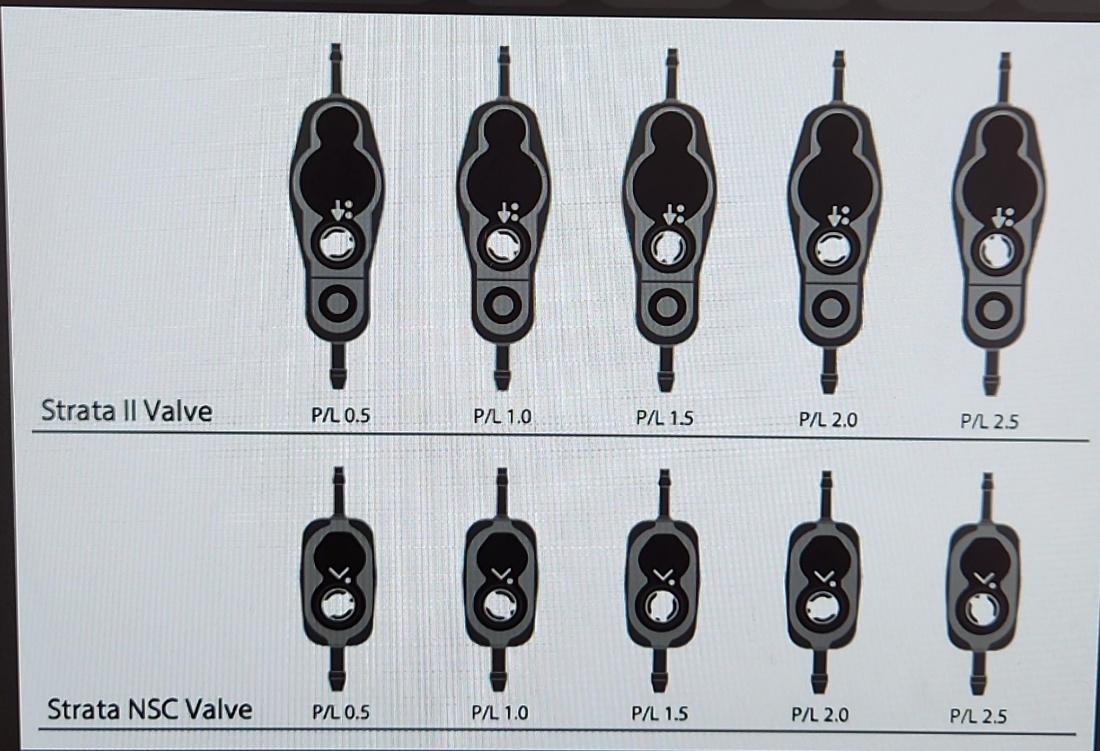

ttttt Strata Il Valve Strata NSC Valve 0.5 P/L OS P/L 1.0 PIL 1.5 PIL 1.5 PIL 2.0 P/L 2.0 23 P/L2S

Medtronic strata programmable

Valve performance level
Opening pressure while lying (cm H₂O)
Opening pressure while standing (cm H₂O)
0.5
1.5
3.0
1.0
3.5
5.0
1.5
7.0
8.5
2.0
10.5
12.0
2.5
13.5
14.7

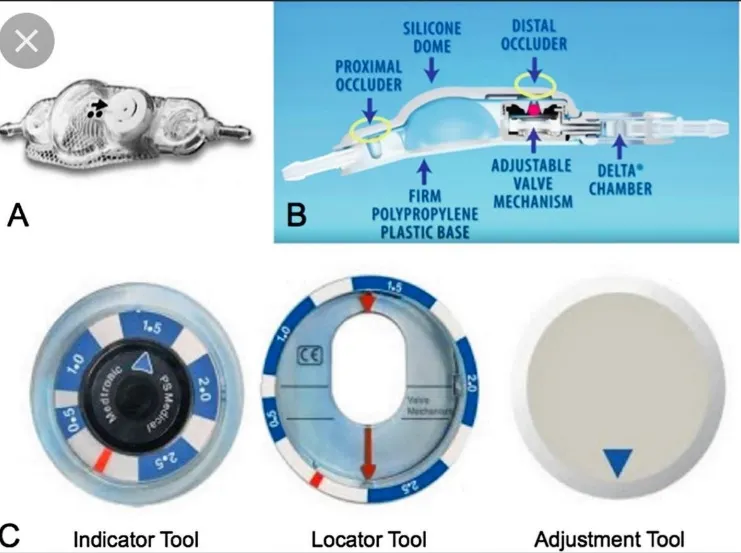

SILICONE DOME PROXIMAL OCCLUDER DISTAL OCCLUDER DELTA• CHAMBER Valve Performance Level 0.5 2.0 2.5 Opening penjng Pressure (cm Pressure (cm ADJUSTABLE VALVE FIRM MECHANISM POLYPROPYLENE Locator Tool H20) Lying 3.5 7.0 10.5 13.5 H20) Standin 3.0 5.0 12.0 14.7 Indicator Tool Adjustment Tool
notion image
