Indirect revascularization procedures

View Details
logo
Parent item
Vascular bypass

General

  • Usually reserved for younger patients (suggested cut off age ≈ 15 years).
  • Use in paeds more as
    • Paeds have smaller vessels (<1mm)
    • Paeds have more ischaemic brains to induce neoangiogenesis from the revascularization procedure
  • May be combined with STA-MCA bypass.
  • Promote new capillary network formation
  • If the PbO2 of the brain isnt low its likely indirect revascularization will not work

Pros

  • Recipient vessel size not important
  • As revascularization occurs over with time, new flow into ischaemia area is of smaller volume → ischaemic brain more able to accommodate this low flow
  • Easier

Cons

  • Delay in revascularization
  • Indirect revascularization procedures improve blood flow in the MCA distribution, but not ACA circulation. This may be rectified by:
    • Simple placement of frontal burr holes with opening of the underlying dura and arachnoid
    • “Ribbon EDAS” where a pedicle of galea is inserted into the interhemispheric fissure on both sides

Includes

Encephalomyosynangiosis (EMS)
  • Laying the temporalis muscle on the surface of the brain
  • May cause problems with muscle contractions during talking and chewing, and neural impulses on surface of brain

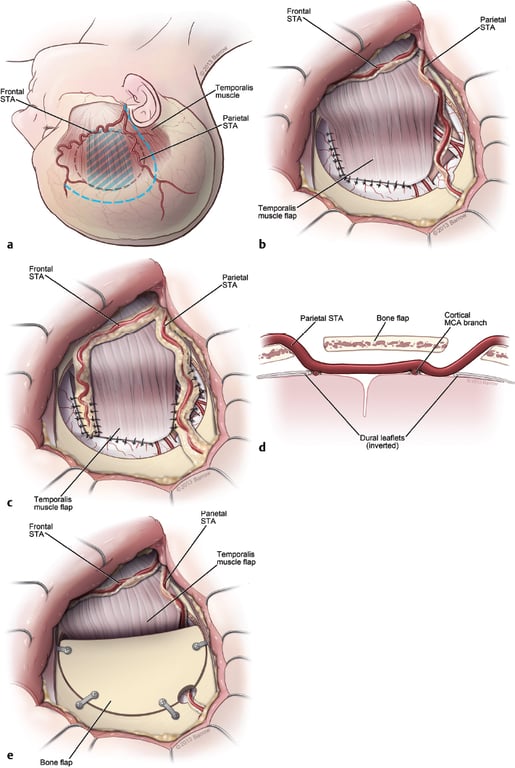

10 Pediatric Moyamoya Disease | Neupsy Key
A diagram of a human body AI-generated content may be incorrect.

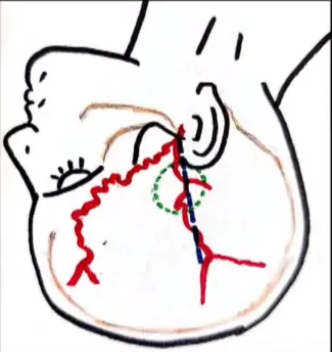

Frontotemporal incision with frontotemporal craniotomy
A diagram of a human body AI-generated content may be incorrect.
Flap of temporalis & fascia cut on 3 sides. Dura cut in cruciate fashion. Temporalis muscle flap sutured with dura.
A diagram of a human body AI-generated content may be incorrect.

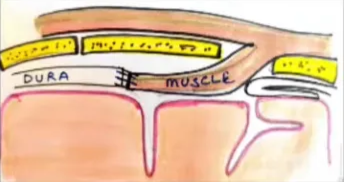

Cross-sectional view of split-thickness temporalis muscle graft, seen under the edge of craniotomy flap. Inverted dura and muscle flap sutured together.
Encephaloduroarteriosynangiosis (EDAS)
  • Suturing the STA with a galeal cuff to a linear defect created in the dura.
  • Variations on this technique include splitting the dura
A diagram of a human body AI-generated content may be incorrect.
Incision along parietal STA craniotomy with 2 burr holes, top and bottom to allow STA
A diagram of a human body AI-generated content may be incorrect.
Cruciate dural opening, MMA branches preserved. Suture anchoring the galea and fat of the STA to the pia adjacent to the cortical MCA branch
A diagram of a human body AI-generated content may be incorrect.

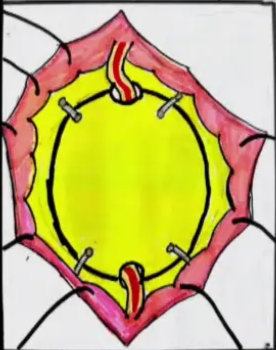

Bone flap reconstruction, STA under the bone flap through expanded burr holes.

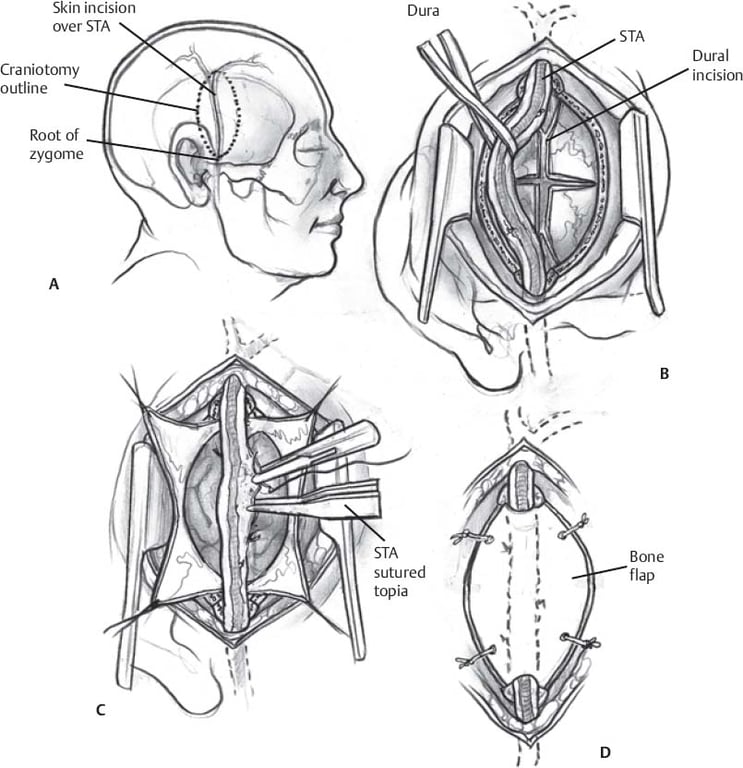

Encephaloduroarteriosynangiosis | Neupsy Key

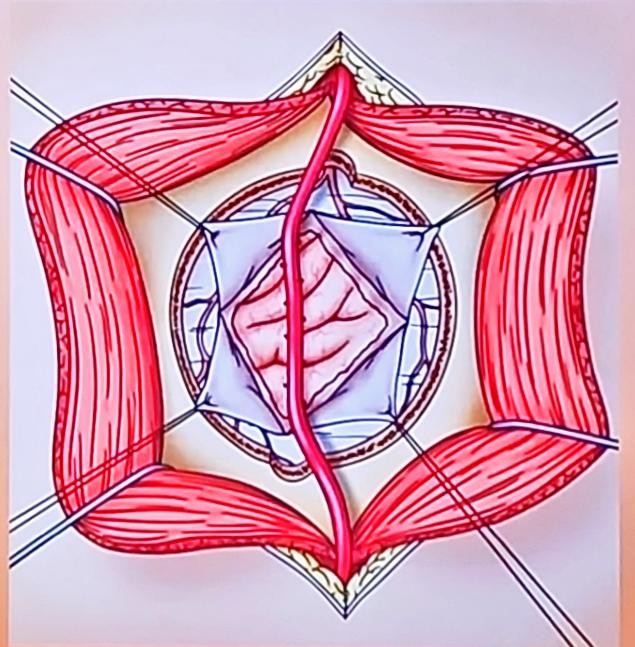

A drawing of a human body AI-generated content may be incorrect.
Encephaloduroarteriomyosynangiosis (EDAMS)
A diagram of a person's body AI-generated content may be incorrect.
Frontotemporal incision encompassing the parietal STA and temporalis muscle
A diagram of a person's body AI-generated content may be incorrect.

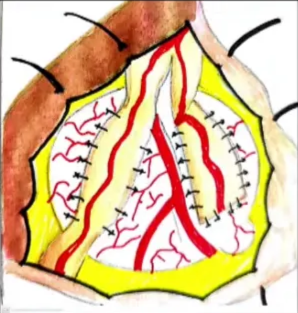

Strip temporalis muscle sutured to dural, STA branches lying on brain
A diagram of a person's body AI-generated content may be incorrect.
Bone flap reconstruction with opening inferiorly for passage of artery and muscle
Encephalodurosynangiosis (EDS)
A close-up of a drawing AI-generated content may be incorrect.
Craniotomy and scalp incision along with STA frontal and parietal branch
A close-up of a drawing AI-generated content may be incorrect.
Craniotomy deep to temporalis muscle with dural incision shown in blue which preserves the 2 Middle Meningeal artery branches.
A close-up of a drawing AI-generated content may be incorrect.
Leaflets of Dura inverted, tucked under followed by replacement of bone flap
EncephaloGaleosynangiosis (EGS)
A close-up of a diagram AI-generated content may be incorrect.
Galea below superior temporal line split into the superficial temporal fascia in which the STA lies and deep temporal fascia covers temporalis muscle.
A close-up of a diagram AI-generated content may be incorrect.
A wide cuff of galea is kept with the STA branches and rotated to place the artery over the cortex. Galea cuff sutured with dura.
Multiple burr holes
Multiple burr holes diagram AI-generated content may be incorrect.
Retrocoronal bilateral incision
Multiple burr holes diagram AI-generated content may be incorrect.
Multiple burr holes (8-10) placed on frontal, parietal, temporal regions of affected side
Multiple burr holes diagram AI-generated content may be incorrect.
Dural incision taken. Pericranial flap placed below the dura
Omental transposition
  • Either as a pedicle graft or as a vascularized free flap.
  • Pros: higher potential to revascularize ischemic tissue than above procedures,
  • Cons: Greater risk of mass effect from the thickness of the omentum
Stellate ganglionectomy and perivascular sympathectomy
  • Unproven that this increases CBF permanently

Outcome with surgical treatment

  • Neurologic status at time of treatment generally predicts long-term outcome.
  • Mortality rate in adults (≈ 10%) is higher than for juveniles (≈ 4.3%).
  • Bleeding
    • 56% of children
    • 63% of adults.
  • Treatment the prognosis is good in 58%.
