Anterior Riew osteotomy

View Details

General

  • An osteotomy through the cervical disc space and uncovertebral joints back to the level of the transverse foramen bilaterally
  • Surgical Exposure:
    • The neck is prepped and draped.
    • Operating microscope
    • Use standard Smith-Robinson approach, with fluoroscopy used to confirm levels.
    • Special care is taken to expose the kyphosis apex, which may be significantly deeper.
    • Longus colli muscles
      • Are detached and stripped
      • Often transected in kyphotic patients as they contribute to neck flexion, with careful avoidance of the sympathetic chain.
    • Anterior osteophytes are removed using a Leksell rongeur to facilitate disc space exposure.

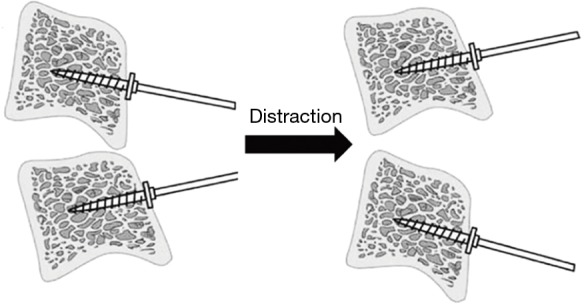

  • Caspar Pin Placement:
      • Caspar pins are placed into the vertebral body at the level of the intended osteotomy.
      • These pins should be placed perpendicular to the anterior wall of the vertebral body, which may result in divergent pins, but is crucial for achieving lordosis upon distraction
      • In osteoporotic bone, two sets of pins can be used for stronger purchase.
      notion image
  • Anterior Osteotomy:
    • The osteotomy is performed using a high-speed 2.5 mm matchstick burr.
    • The bony resection should be perpendicular to the spine in the same plane as the disc space to ensure symmetric resection.
    • For combined coronal and kyphotic deformities, the bony resection can be asymmetric for tailored alignment correction.
    • The osteotomy is carried back to the PLL across the disc space and laterally up to the uncovertebral joints.
  • Lateral Osteotomy:
    • This is performed in a careful to avoid vertebral artery injury.
    • A combination of upgoing curette and Penfield No. 4 dissector is used to expose the lateral uncinate process.
    • Critically, a Penfield No. 2 dissector is inserted lateral to the uncinate process to protect the vertebral artery during drilling
    • A thin rim of bone is initially left laterally for protection and then carefully removed with a curette.
    • Once the nerve root is identified, foraminotomy is completed using curettes to definitively decompress the exiting nerve root and complete the osteotomy.

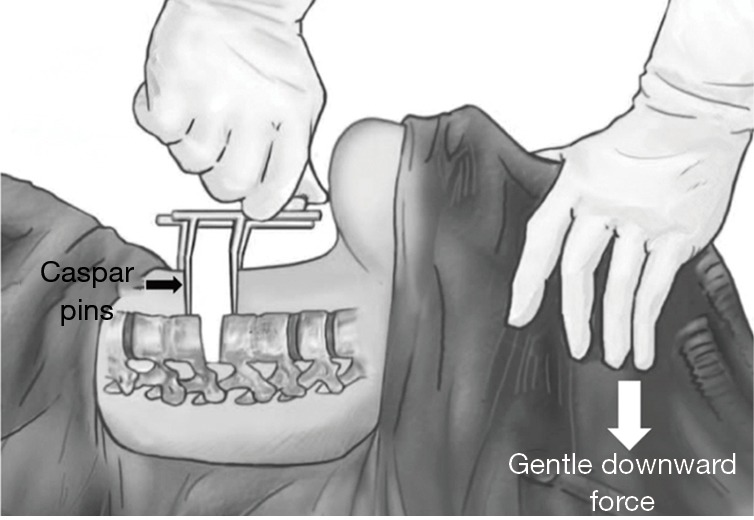

  • Deformity Correction:
      • After the osteotomy is complete bilaterally back to the neural foramen, the sheets or padding under the patient's head are slowly and sequentially removed.
      • Simultaneously, the surgeon applies gentle downward pressure on the patient's forehead
      • This method maximises biomechanical leverage and minimises the risk of Caspar pin loosening or vertebral body fracture.
      notion image
      • Sequentially larger disc space spreader (starting with 5-mm height) are gently rocked cranially and caudally in the disc space while pushing down on the forehead
      • The Caspar distractor is widened to maintain correction.
      • Once the back of the head rests on the operating table, the anterior kyphosis correction is generally complete.
      • If more lordosis is needed, a folded sheet can be placed under the patient's shoulder to elevate the head further.
      • Additional weight (up to 25 lbs.) can be added to the Gardner-Wells tongs to maintain the desired correction.

      notion image
    • In patients with previous posterior fusion or instrumentation, partial correction of the deformity can generally be achieved since the posterior fusion mass will flex a few degrees, although 3.5 mm cobalt chromium rods pose the greatest challenge given their rigidity and strength
  • Bone Graft and Fixation:
    • Bone graft (typically cancellous) is inserted into the distracted osteotomy site.
      • The largest possible graft should be used to maximise surface area and structural support due to the high likelihood of graft subsidence.
    • If full correction is achieved, an anterior cervical plate with fixed angle screws is placed.
      • If additional posterior releases are planned, a trapezoid-shaped bone graft is used, contacting only the anterior osteotomy site to allow for further lordosis.
      • A standalone cage fixed with a single screw, or an interference screw/buttress plate, can prevent graft extrusion during the posterior stage.
      notion image
  • Wound Closure:
    • Hemostasis is obtained.
    • A Penrose drain is recommended over a closed-suction drain to prevent occlusion and allow manual hematoma expression.
    • Immediate posterior fixation is recommended; if delayed, a halo or rigid cervical collar is used.
